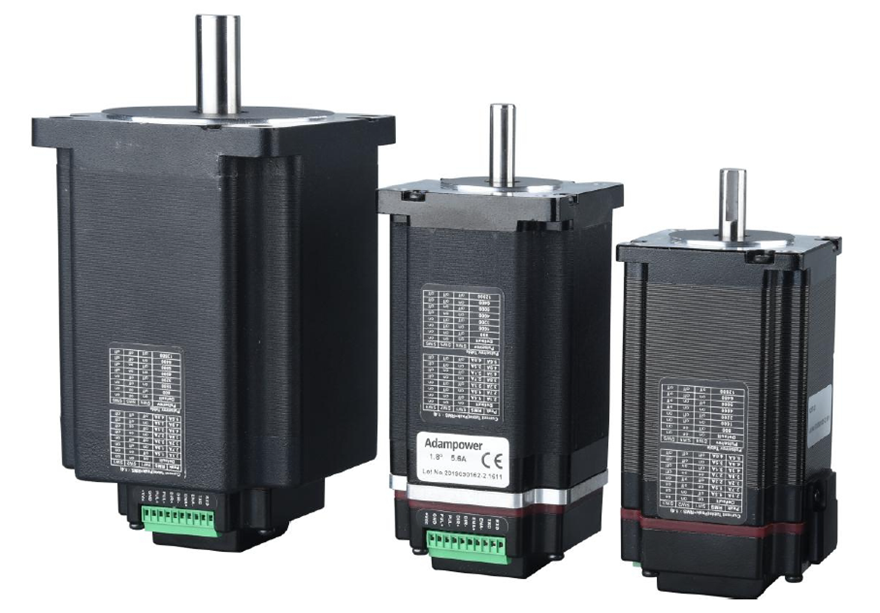

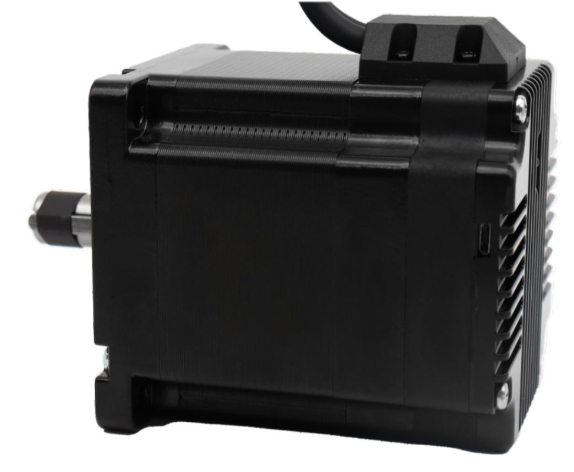

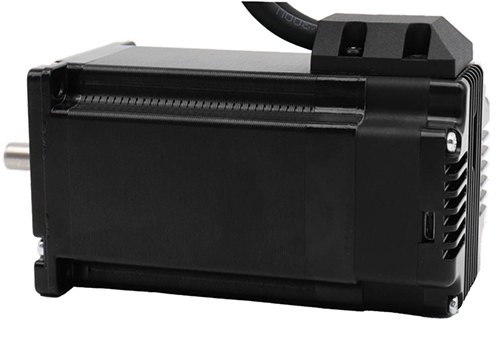

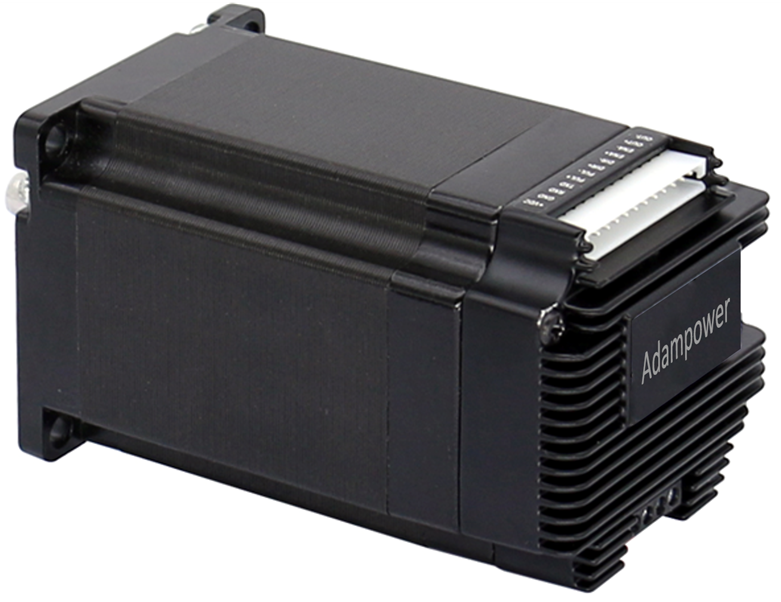

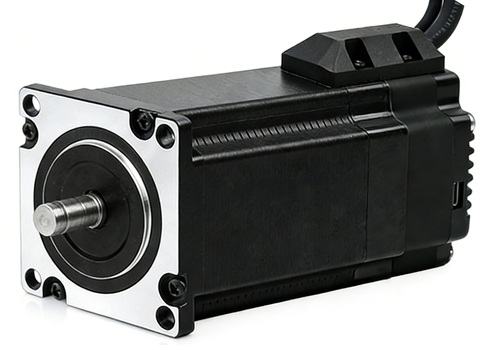

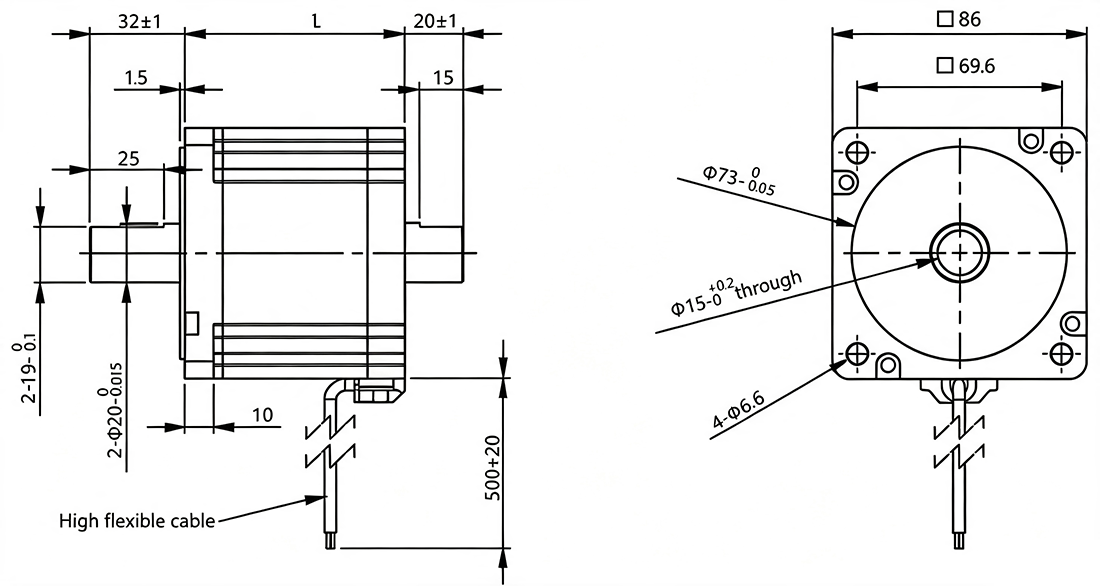

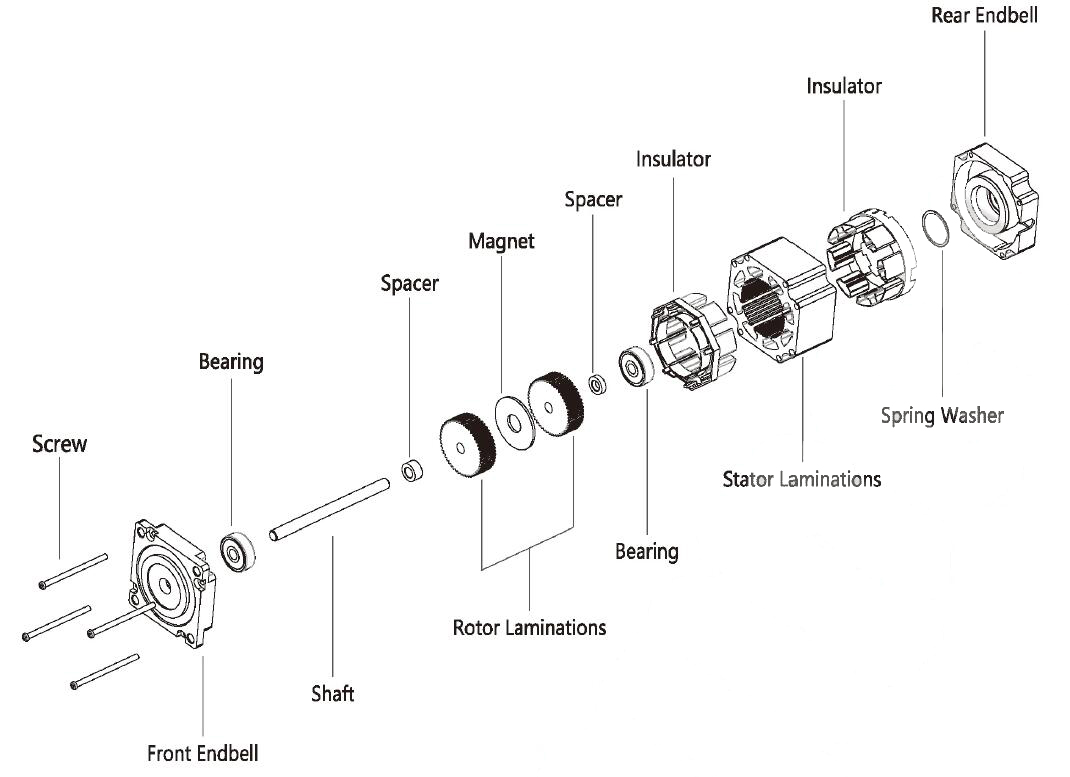

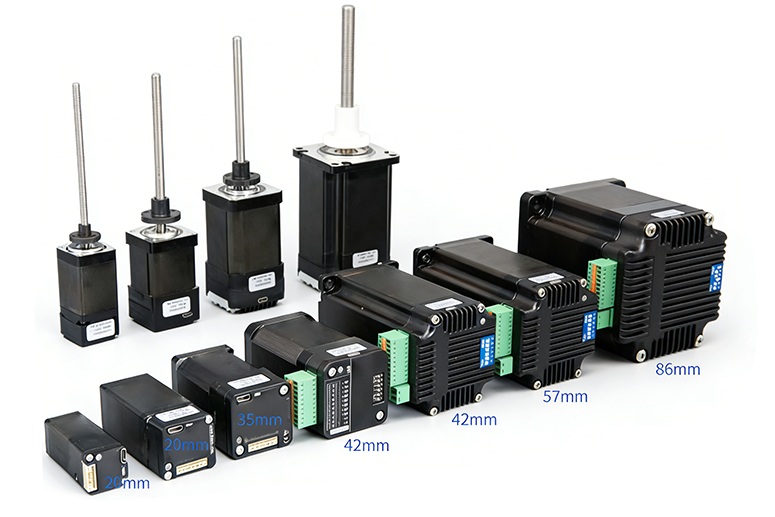

The IM34ET Series Integrated Motors represent a perfect integration of stepper drivers and stepper motors, combining the technologies of both in a single unit. They are fully compatible with 1599-revolution mechanical absolute encoders, which not only save installation space but also streamline wiring connections. By reducing your design and production costs, they stand as the premier choice for your stepper system solutions.

Frame Size: NEMA34
Holding Torque: 4.5–12.5 N·m
Supply Voltage: 18–70 VAC
Supported Protocols: Modbus/RTU, RS485
Built-in Programmable Multi-Turn Feedback: 1599 revolutions; supports user-defined home position with memory, no sensor required

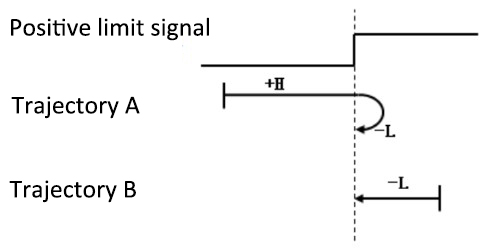

Software Limit Function Supported: More reliable than mechanical limit switches
Closed-Loop Control: 4096-line (16384 counts) encoder feedback

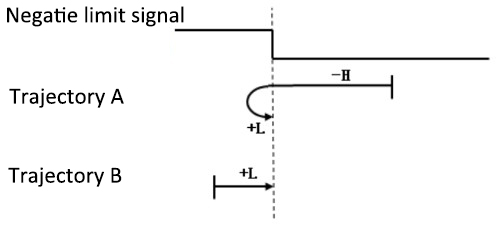

Torque Modes Supported: Homing on collision, constant torque, object gripping
Input Compatibility: 5–24 VDC; Output: Open-collector (OC) output, withstanding voltage up to 30 VDC
Comprehensive Protection Features: Over-voltage, under-voltage, over-current, winding open-circuit, and position deviation protection
Non-Volatile Memory: Configuration parameters stored in the on-chip FLASH of the MCU
Wide Filter Frequency Range: 50 kHz–5 MHz adjustable, factory default at 300 kHz
User-friendly PC interface with full-featured functionality

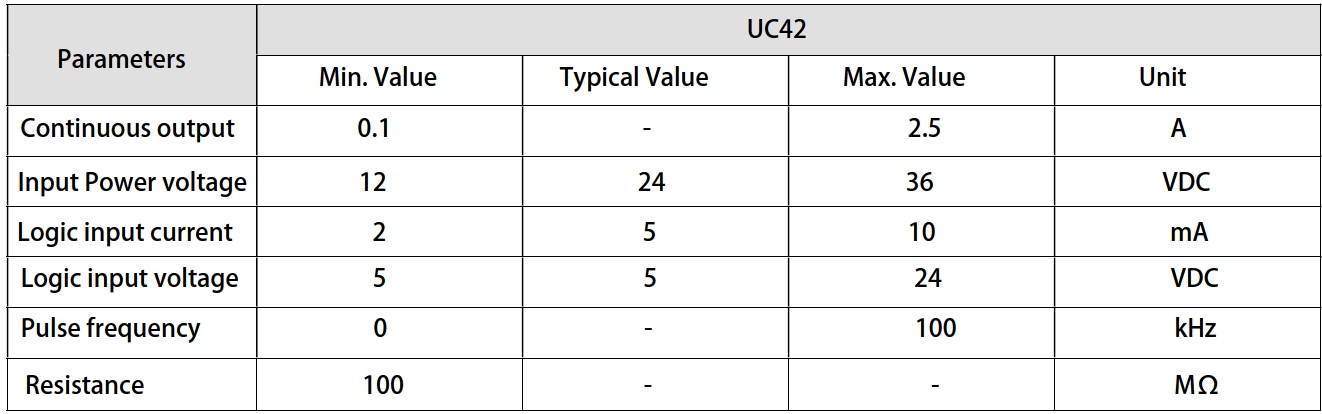

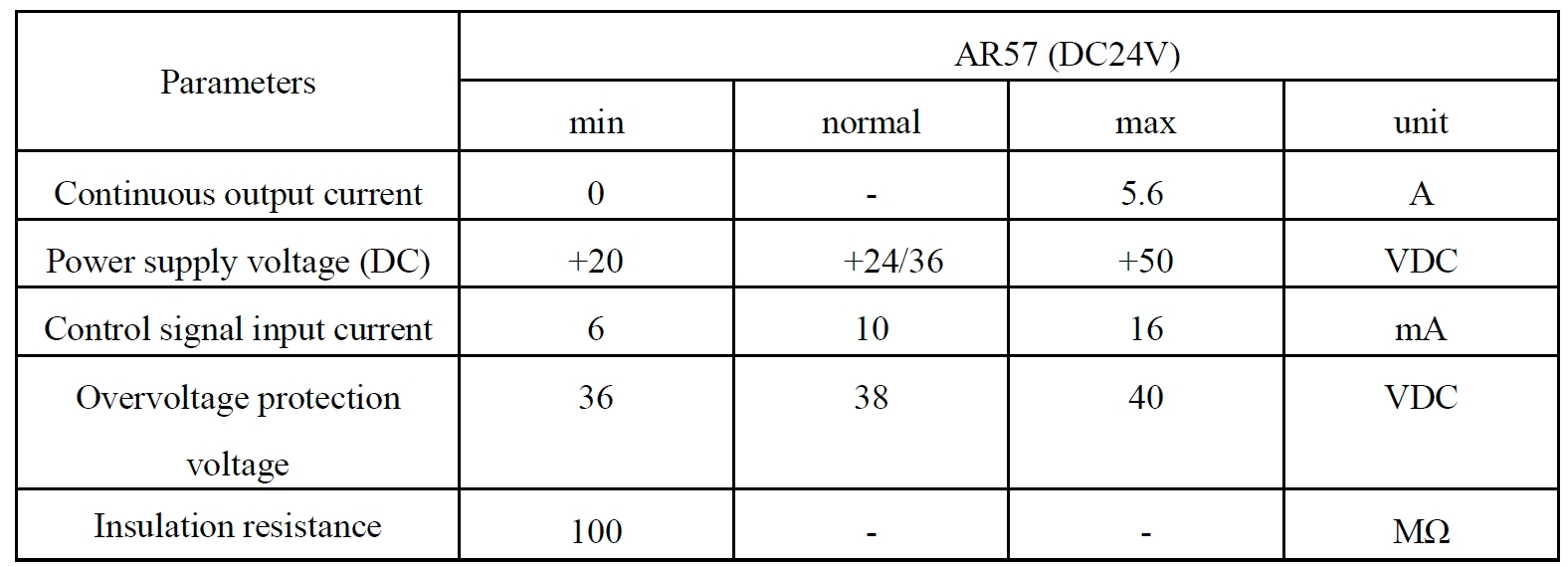

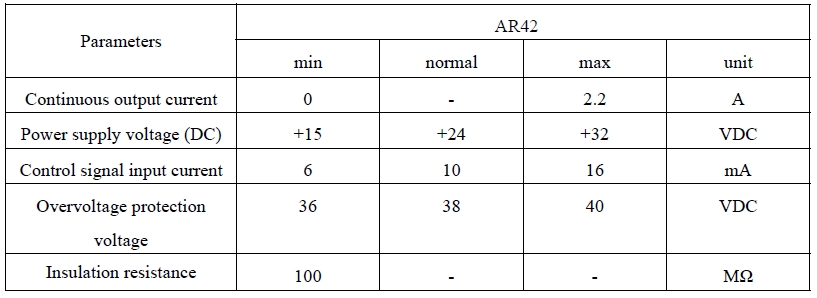

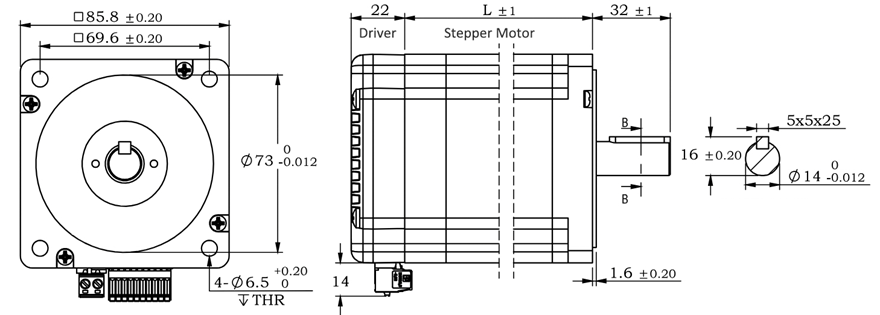

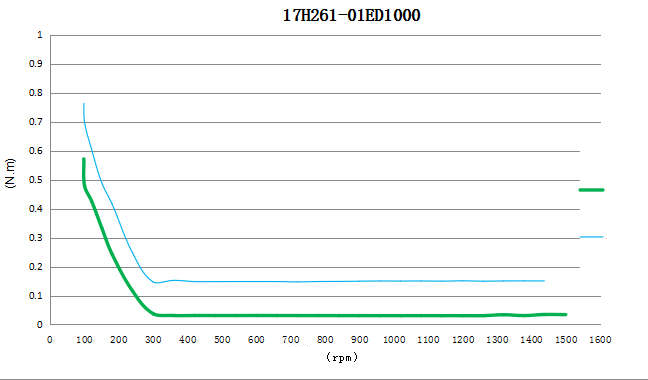

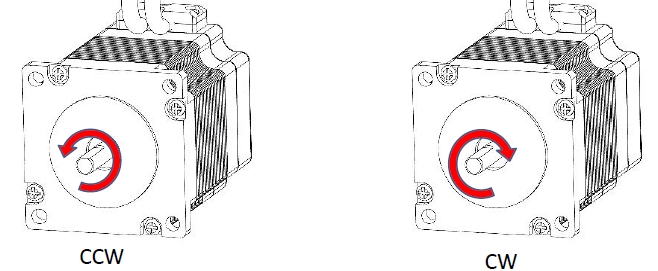

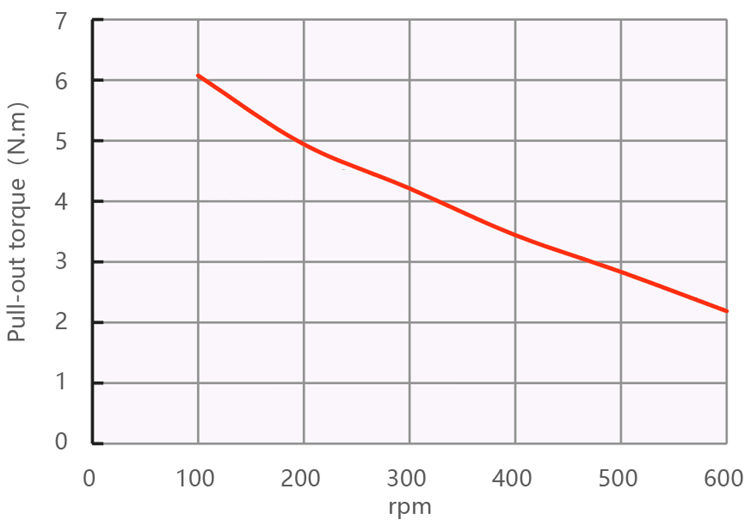

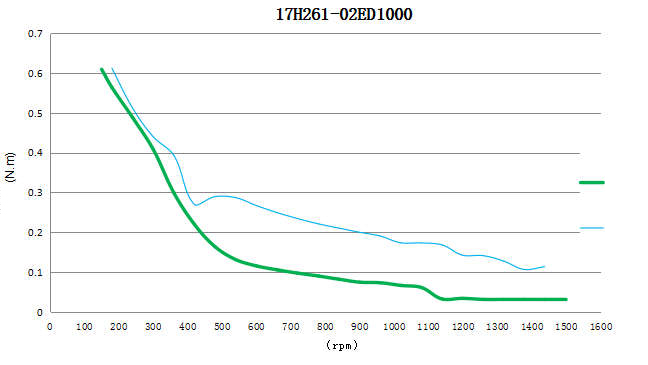

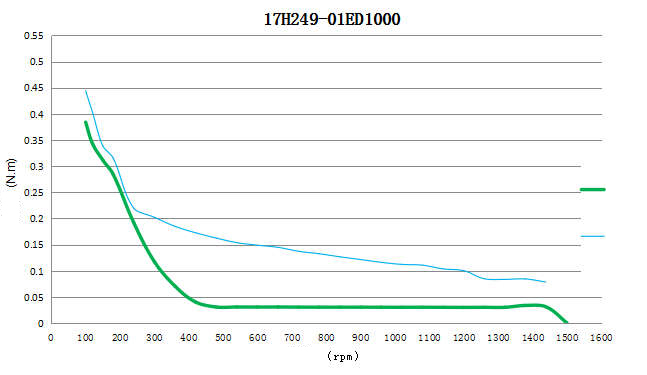

Motor Parameters

CRC Check Routine (C#)

UInt16 Funct_CRC16(unsigned char * puchMsg, UInt16 DataLen)
{
  UInt16 i,j,tmp;
  UInt16 crcdata=0xFFFF;
  for(i=0;i<DataLen;i )
  {
    crcdata=(*puchMsg)^crcdata;
    puchMsg ;
    for(j=0;j<8;j )
    {
      tmp=crcdata&0x0001;
      crcdata=crcdata>>1;
      if(tmp){
        crcdata=crcdata^0xA001;
      }
    }
  }
  return crcdata;
 }

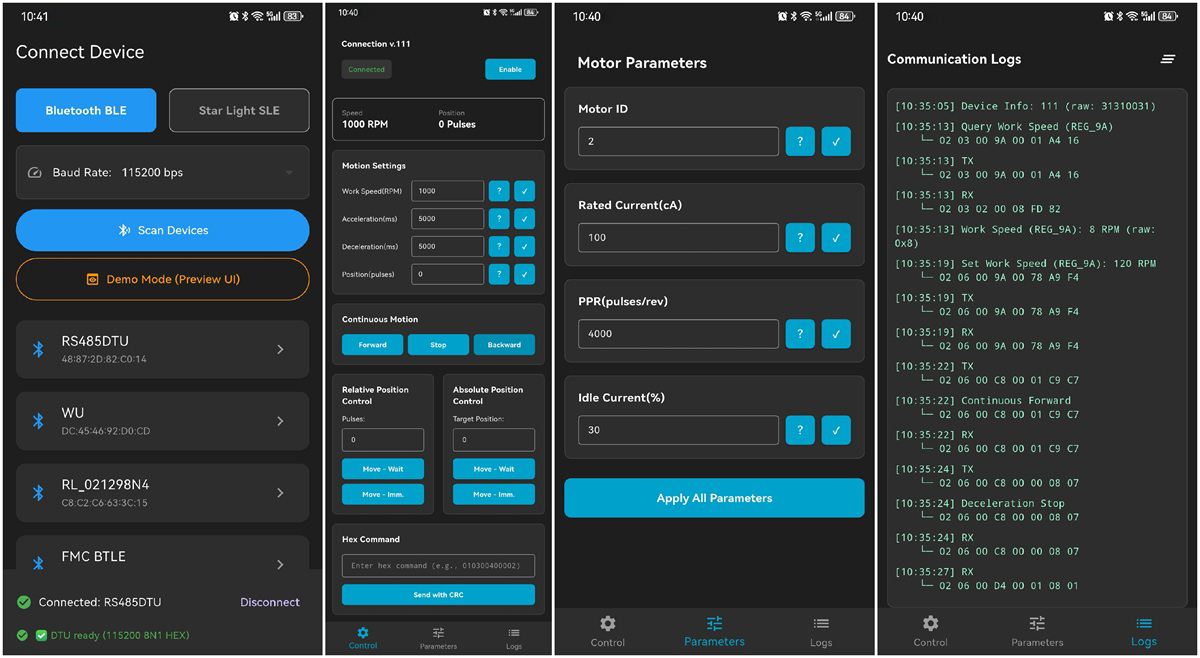

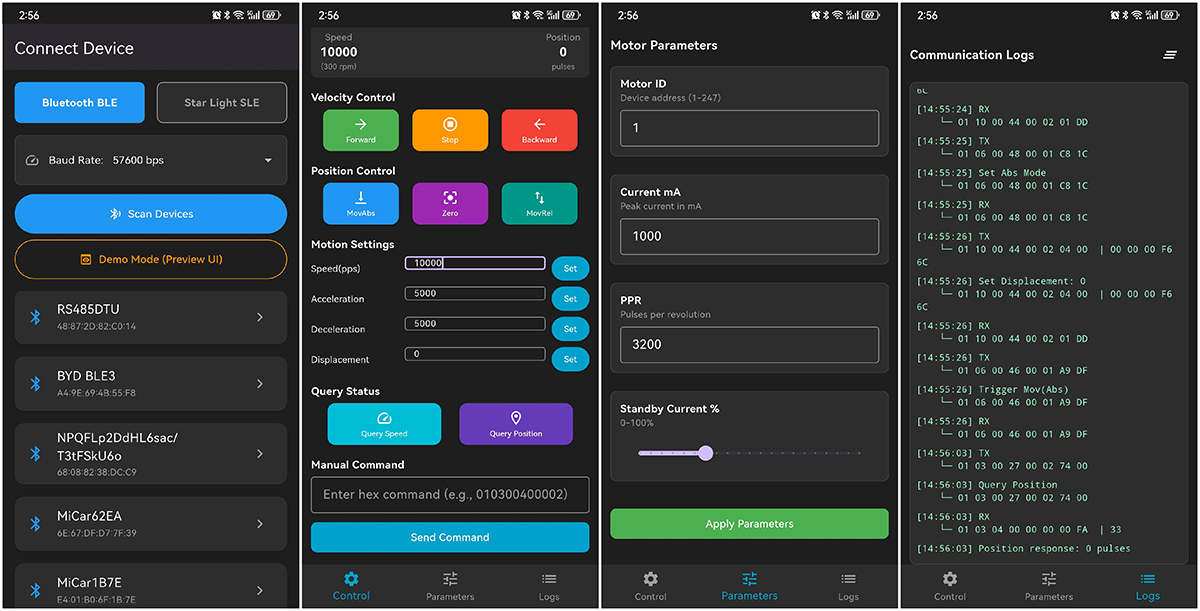

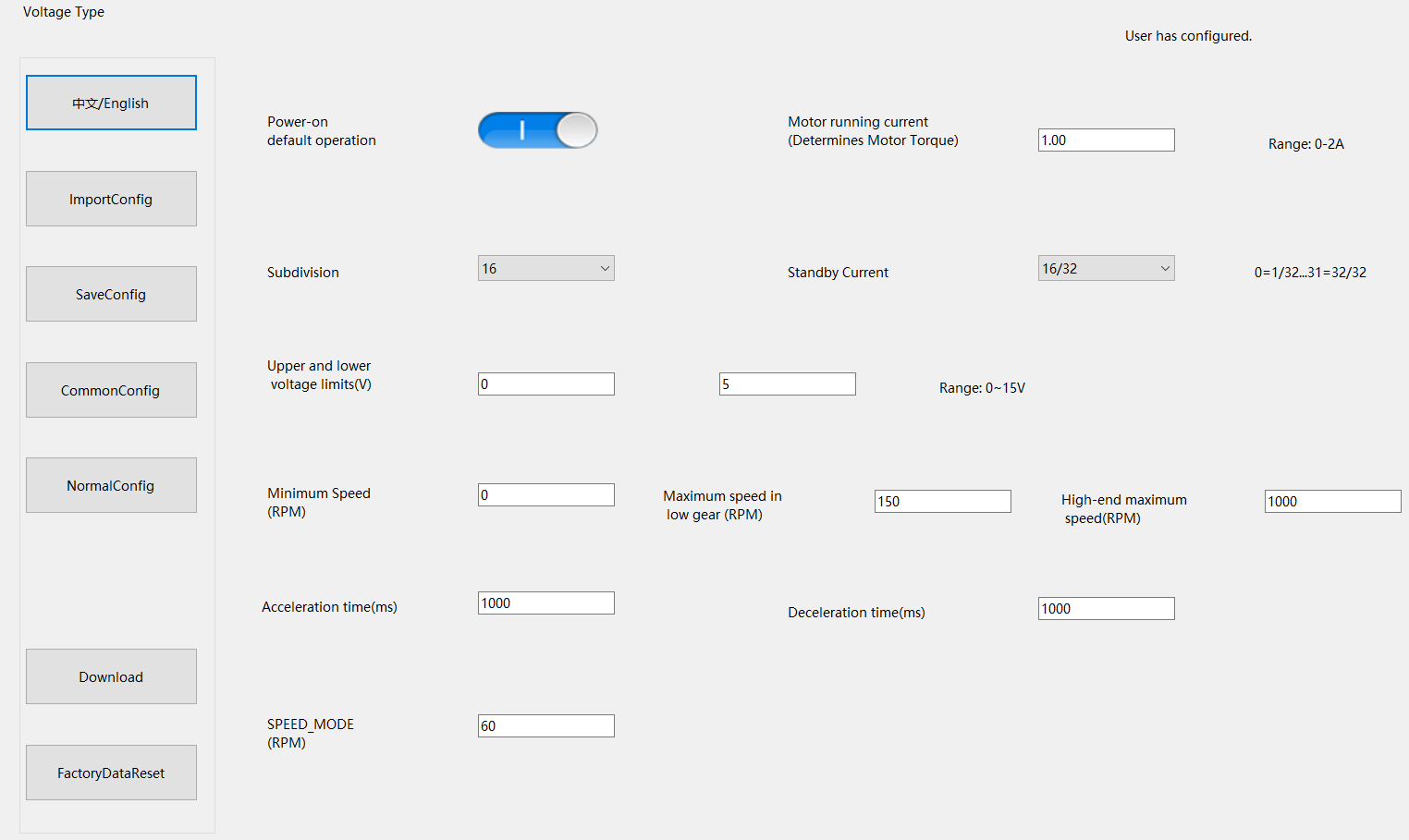

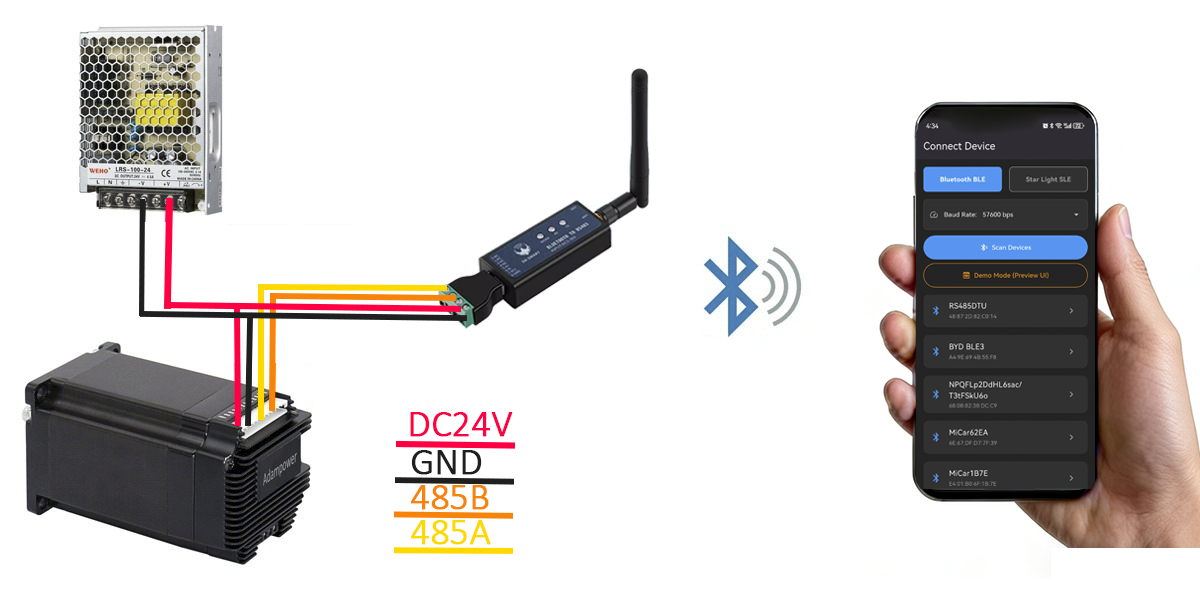

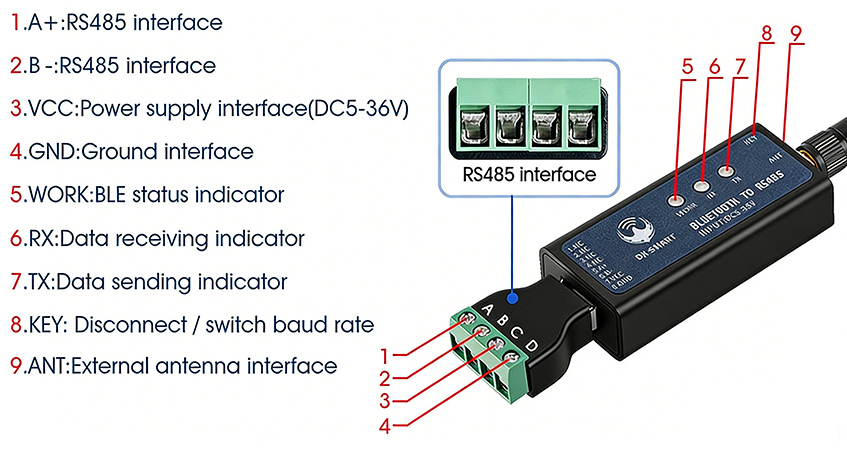

RS485 Integrated Stepper Motor Commissioning and Control Software:

Modbus Poll

New Software in google drive

Github Project

Adampower

Quick Start Guide – Follow the steps below:

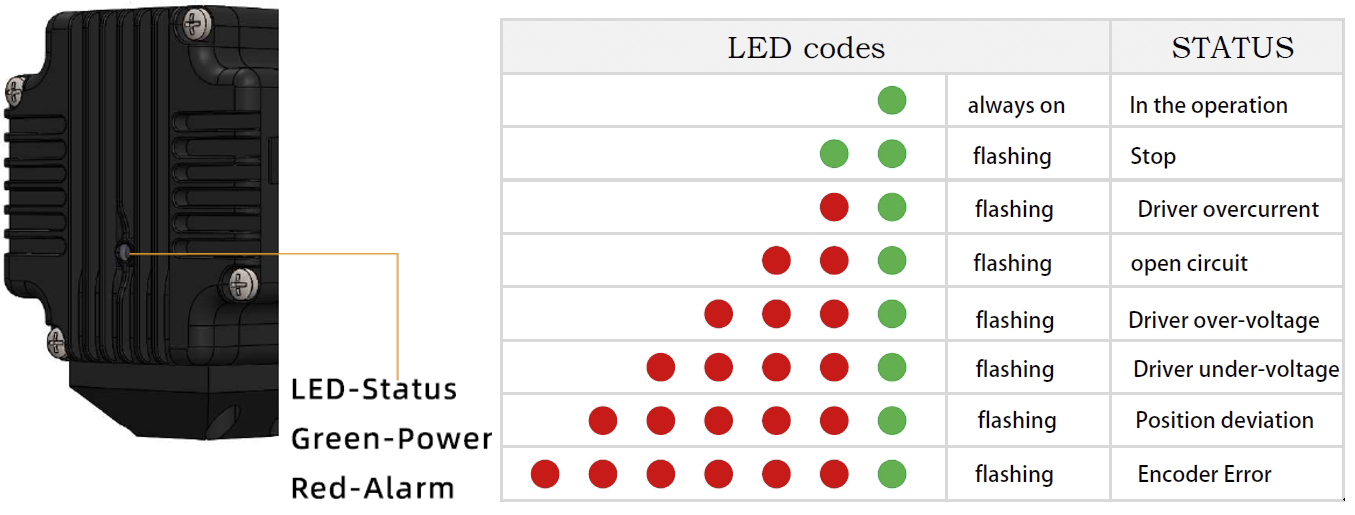

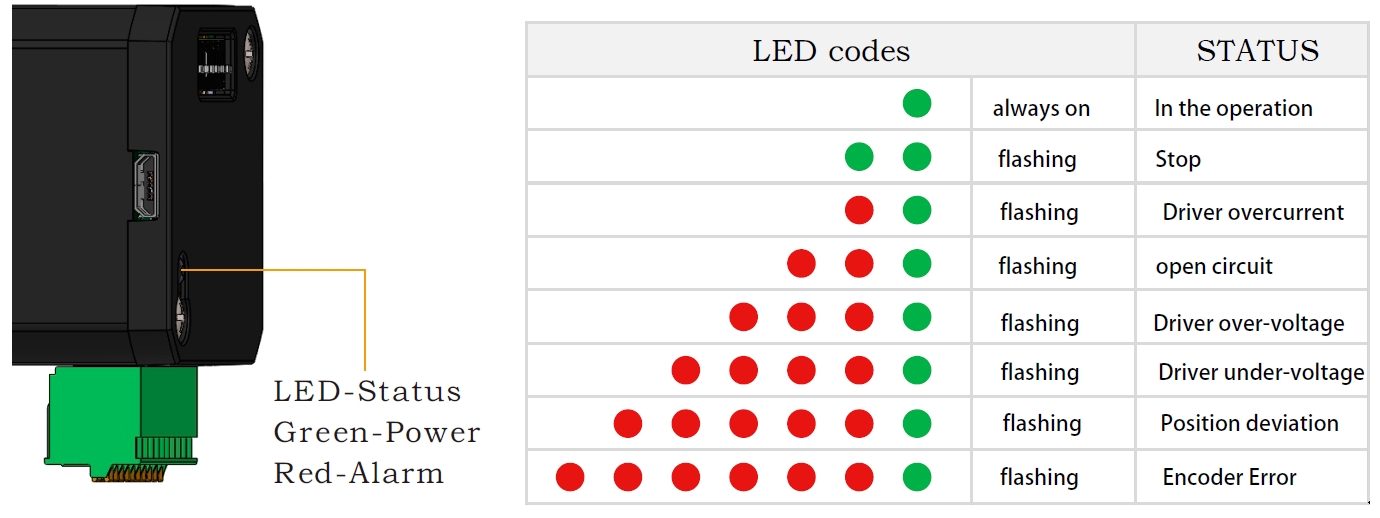

LED indicator and status:

more Information on detail, please feel free to contact me

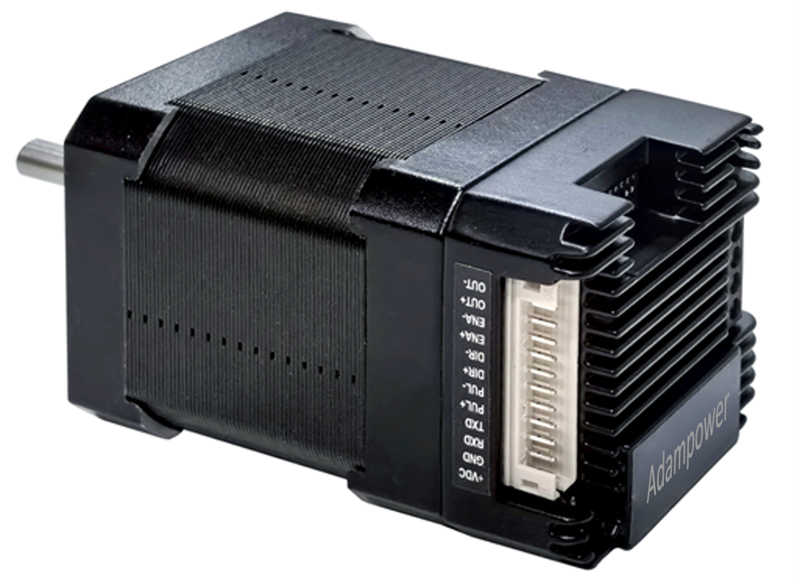

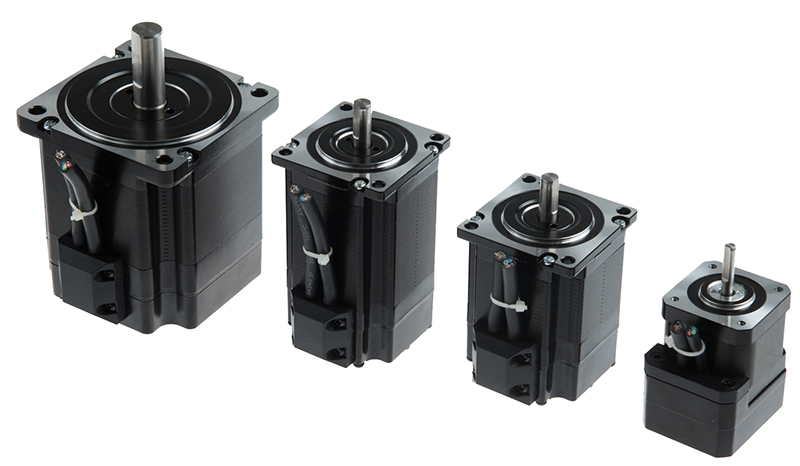

The IG34 series integrated motor is the perfect combination of drive and stepper motor,
which perfectly integrates stepper motor and drive technology, also built in 1000 line encoder,
it can save installation space, Simultaneously saving design and production costs,
supporting RS485 and TTL communication.

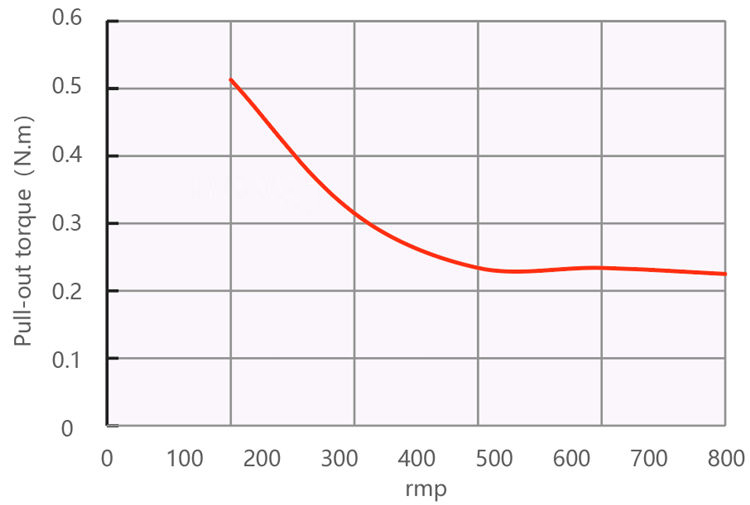

Motor Parameters

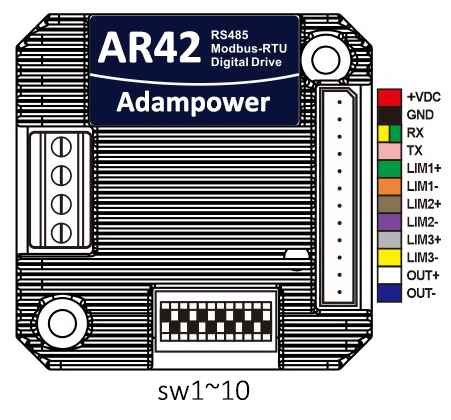

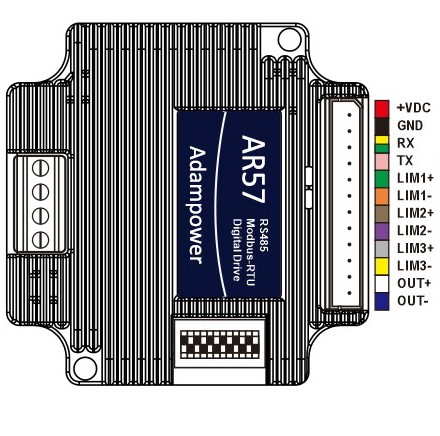

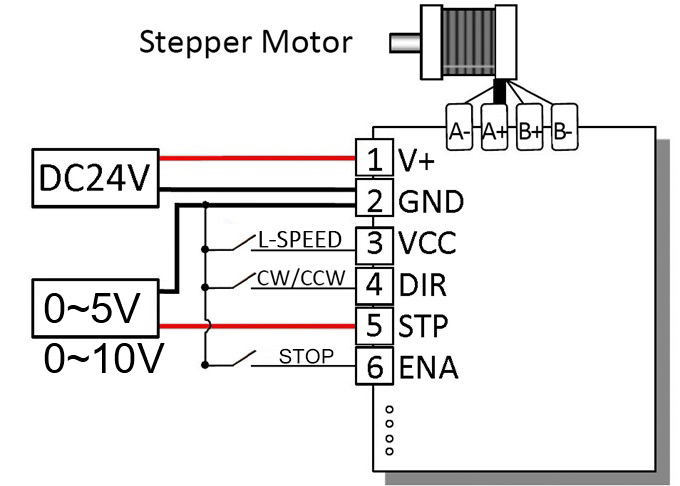

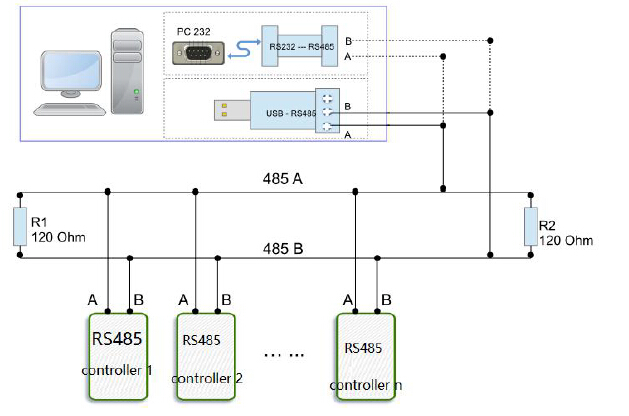

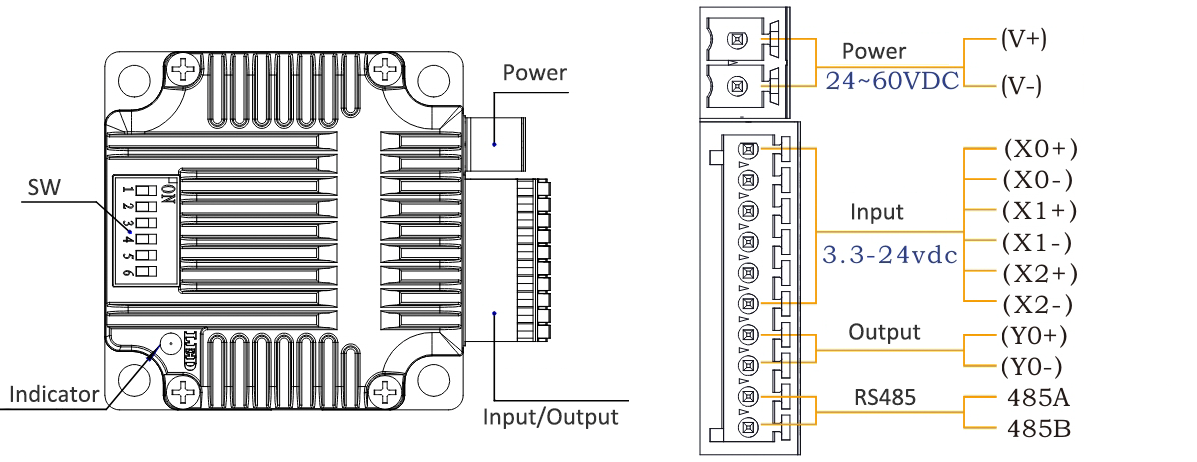

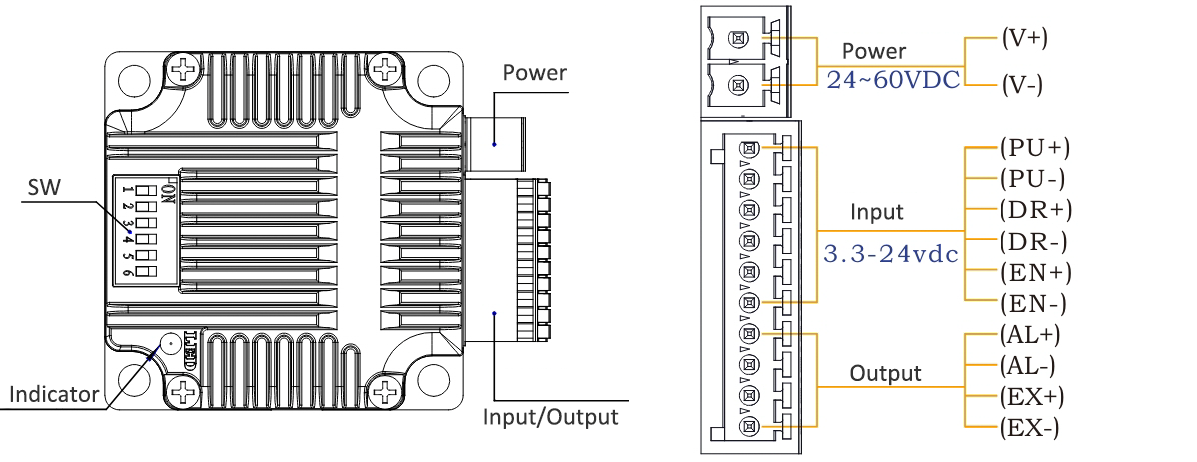

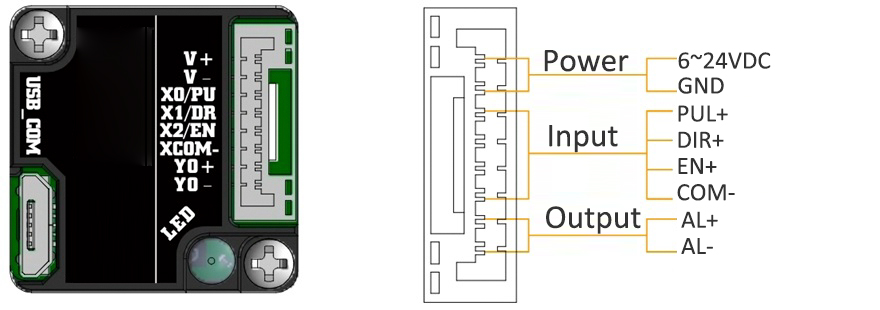

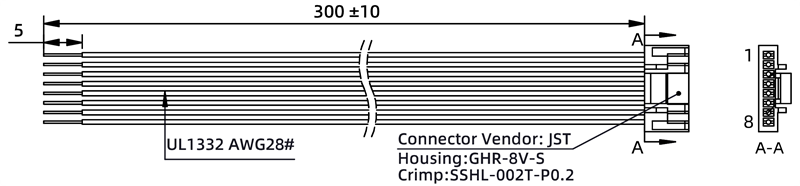

Wiring Diagram:

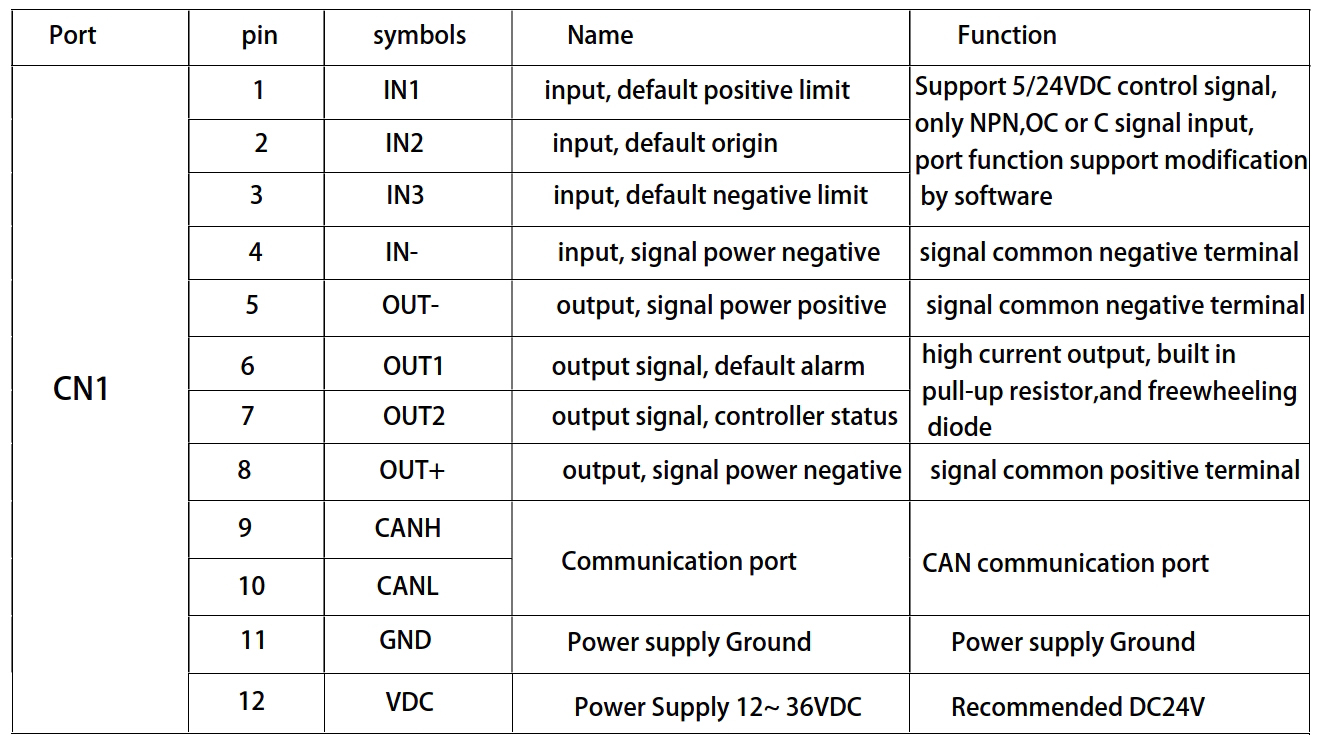

2. RS485 Type Integrated Stepper Motor, Terminal Definition

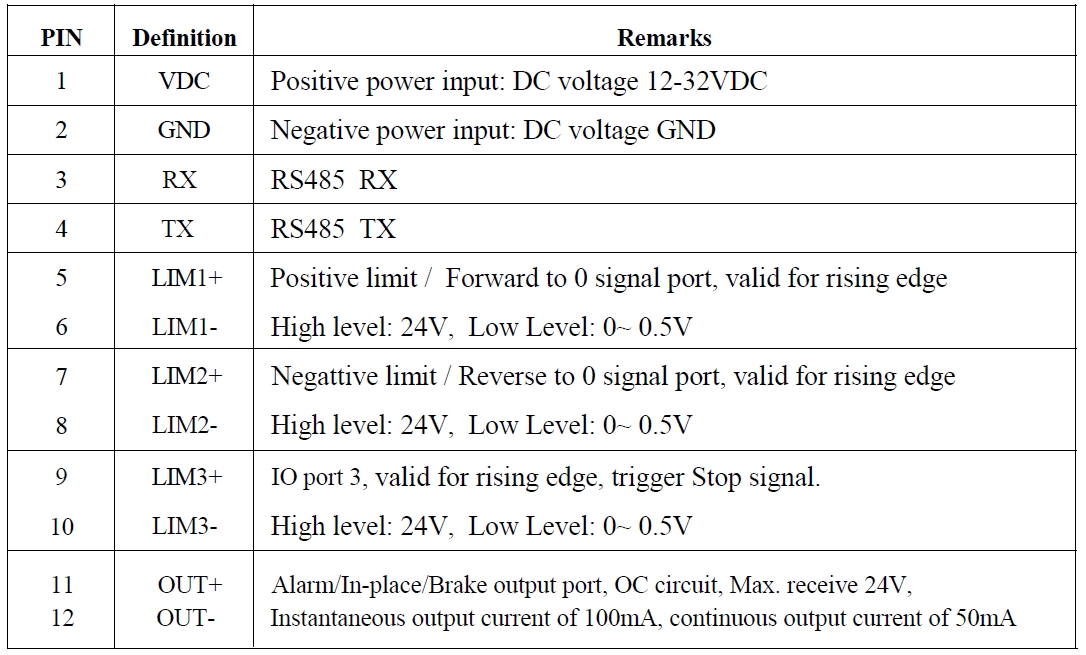

Terminal Definition

Terminal	Name	Description
1	V	24~60VDC
2	V-	GND
3	X0 (PU )	Optoelectronic isolation, differential, High level can directly receive 3.3-24VDC, with a minimum pulse width of 2us, The maximum pulse frequency is 400KHz, which can be used as a universal input port for Pulse/Direction
4	X0-(PU-)
5	X1 (DR )
6	X1-(DR-)
7	X2 (EN )
8	X2-(EN-)
9	Y0 (AL )	The default alarm output port can detect the driver alarm status and provide feedback to the main station. Other functions can be set through communication
10	Y0-(AL-)
11	485A	RS485 Communication port, default baud rate is 115200
12	485B

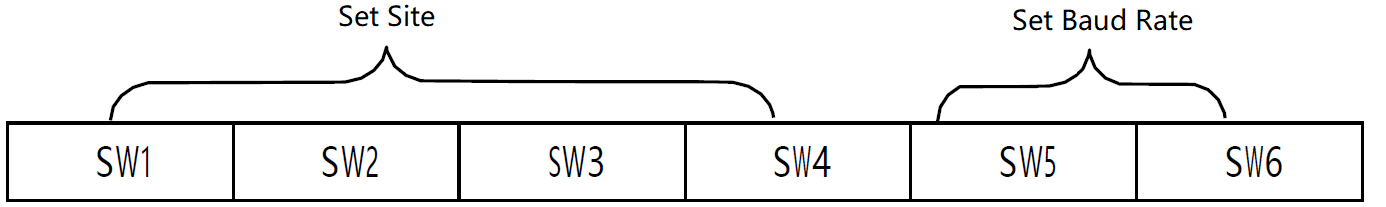

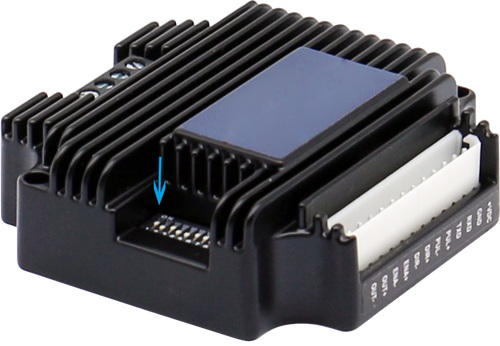

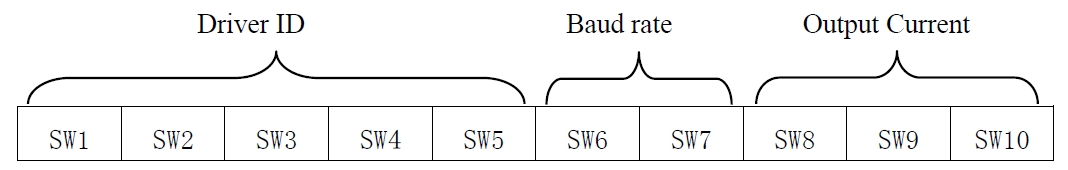

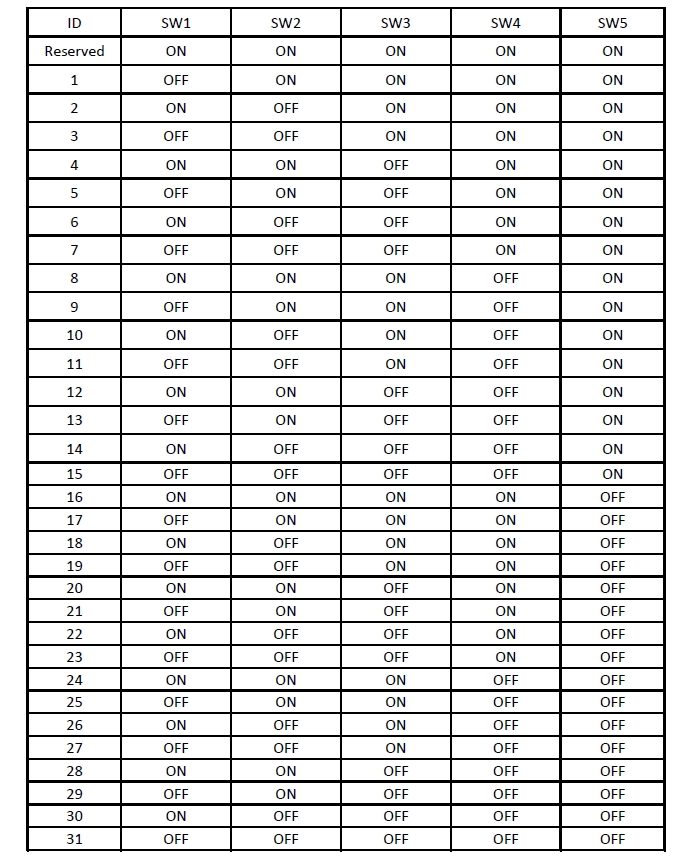

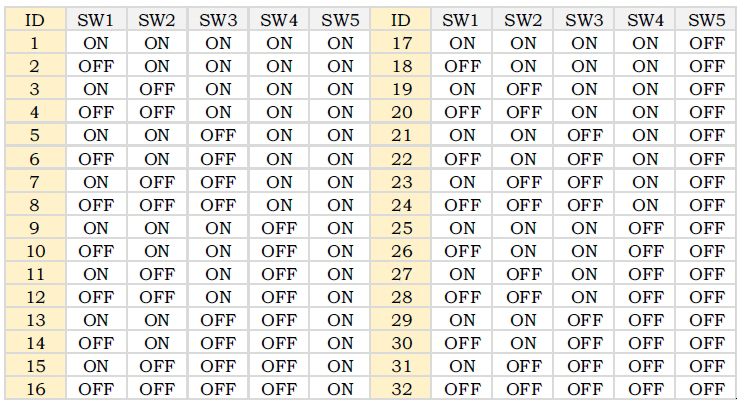

Set Device ID for RS485 integrated Stepper Motor by SW1 ~ SW5:

SW6 is used to set the terminal resistance; OFF=0 ohms; ON=120 ohms

---

CRC Check Routine (C#)

UInt16 Funct_CRC16(unsigned char * puchMsg, UInt16 DataLen)
{
UInt16 i,j,tmp;
UInt16 crcdata=0xFFFF;
for(i=0;i<DataLen;i )
{

crcdata=(*puchMsg)^crcdata;
puchMsg ;
for(j=0;j<8;j )
{
tmp=crcdata&0x0001;
crcdata=crcdata>>1;
if(tmp){
crcdata=crcdata^0xA001;
}
}
}
return crcdata;
}

---

Software Tools for RS485 Control

Modbus Poll

New Software in google drive

Github Project

Step-Config

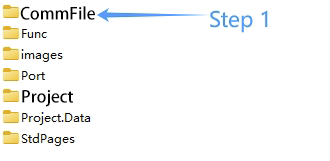

1. Extract the zip file, open CommFile folder and Click Step-Config.exe or Adampower.exe

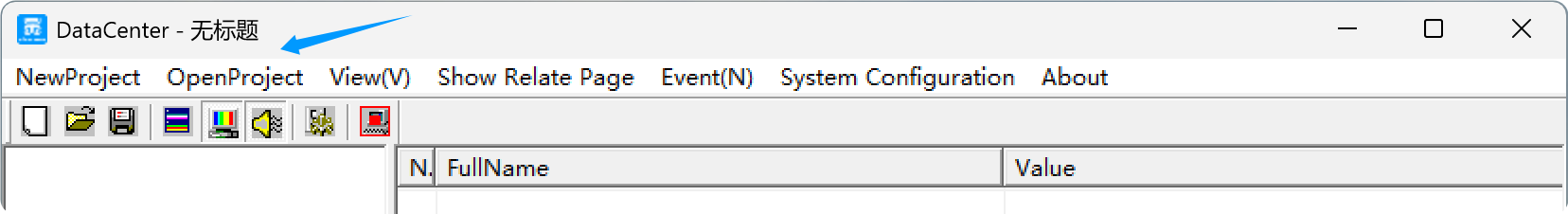

2. Open Project.

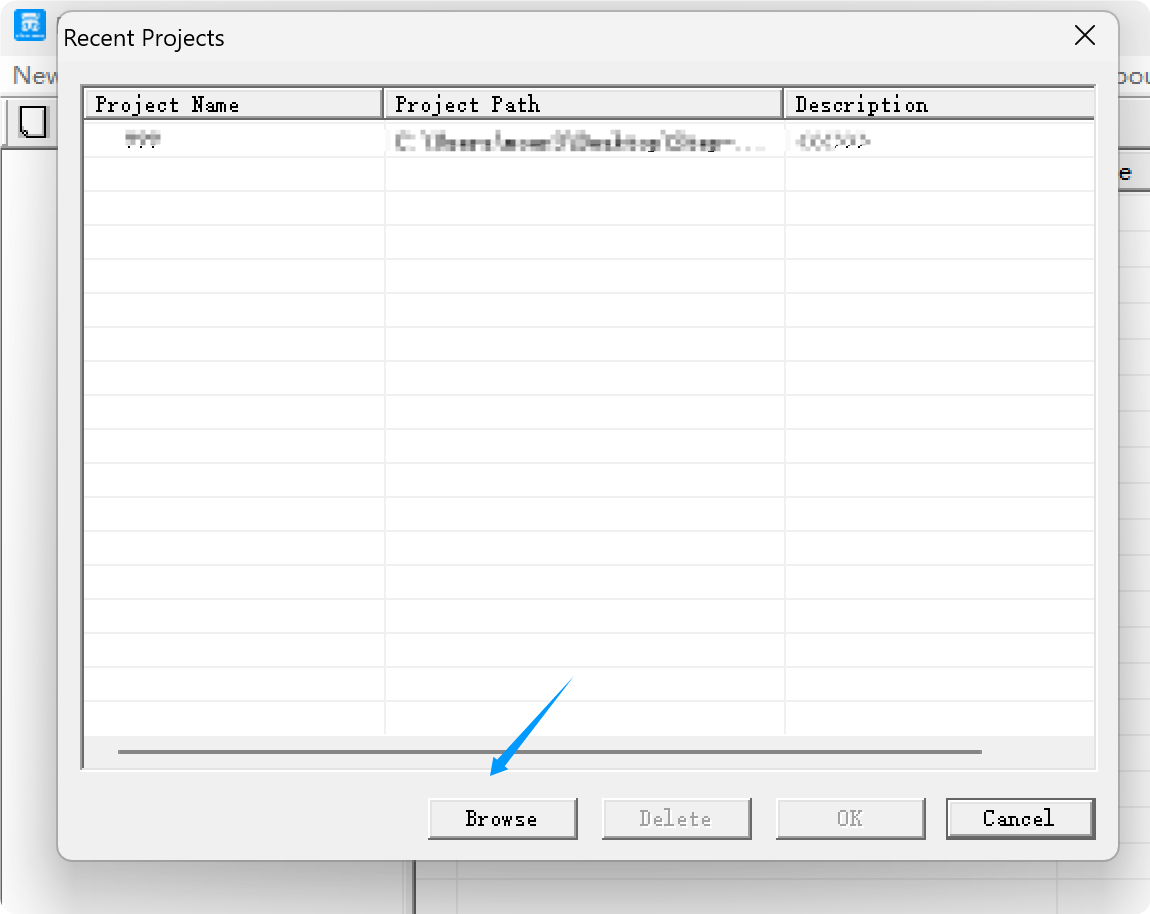

3. Click Browse

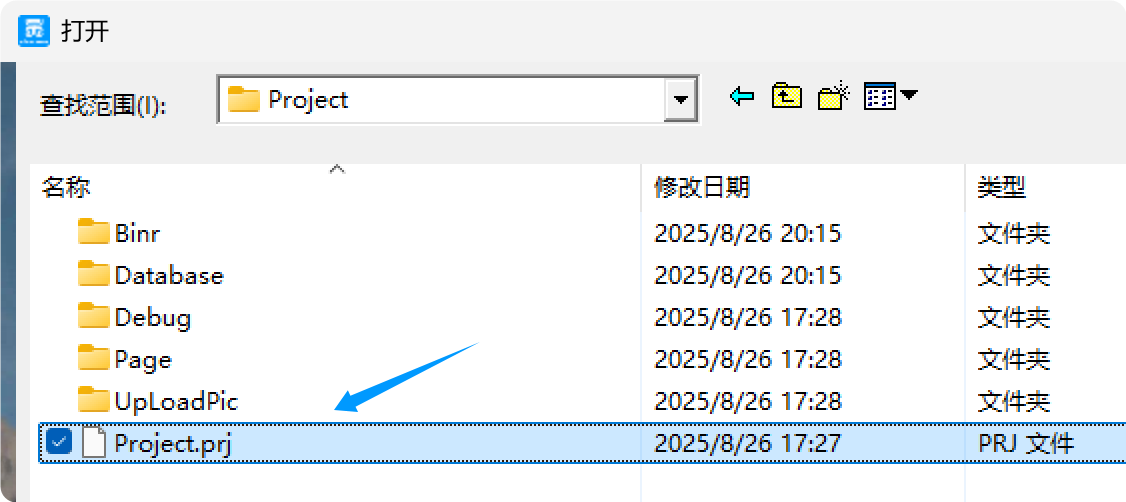

4. Select the Project.prj  in the Project folder, in the same path as CommFile.

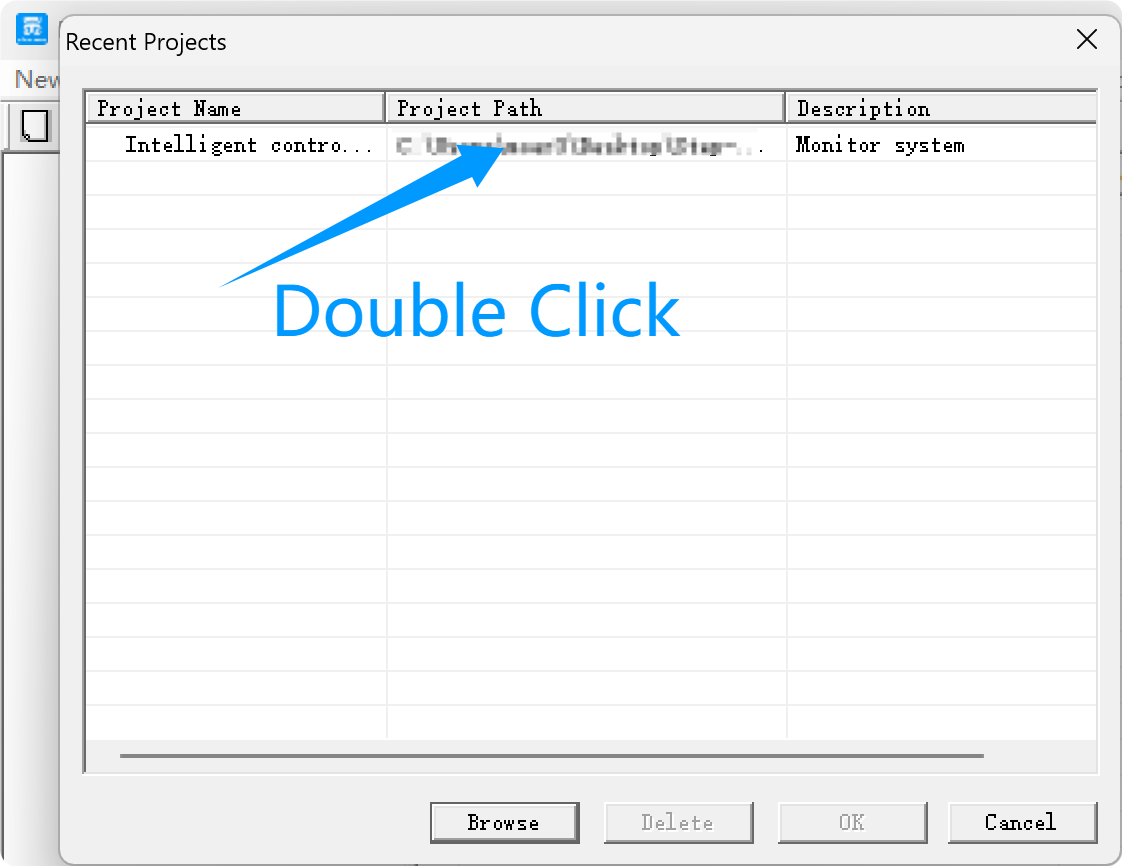

5. Double Click the Project.prj path

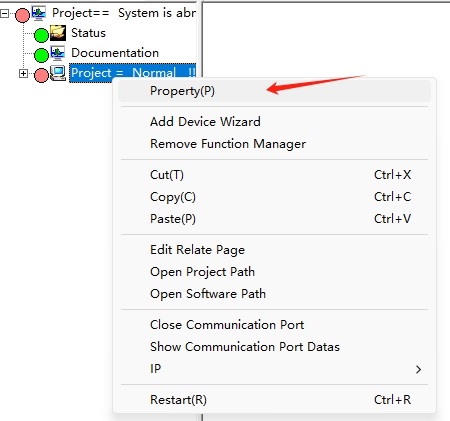

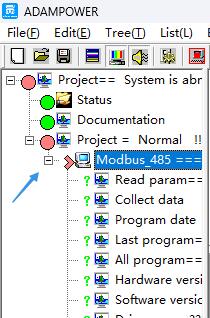

 6. Right Click Modbus_485, and Click Property:

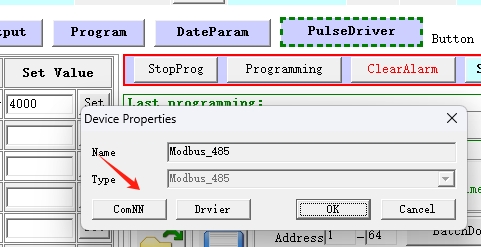

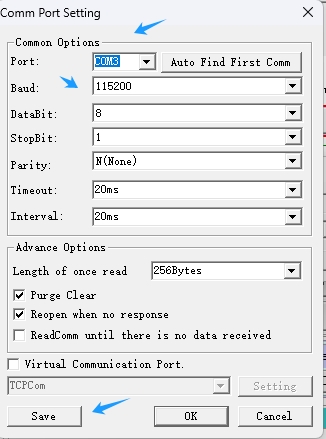

 7. Click Property ComNN, Choose COM port, Baud rate and click Save and OK.


 8. Start to use software control the RS485 Integrated stepper motor by below buttons:

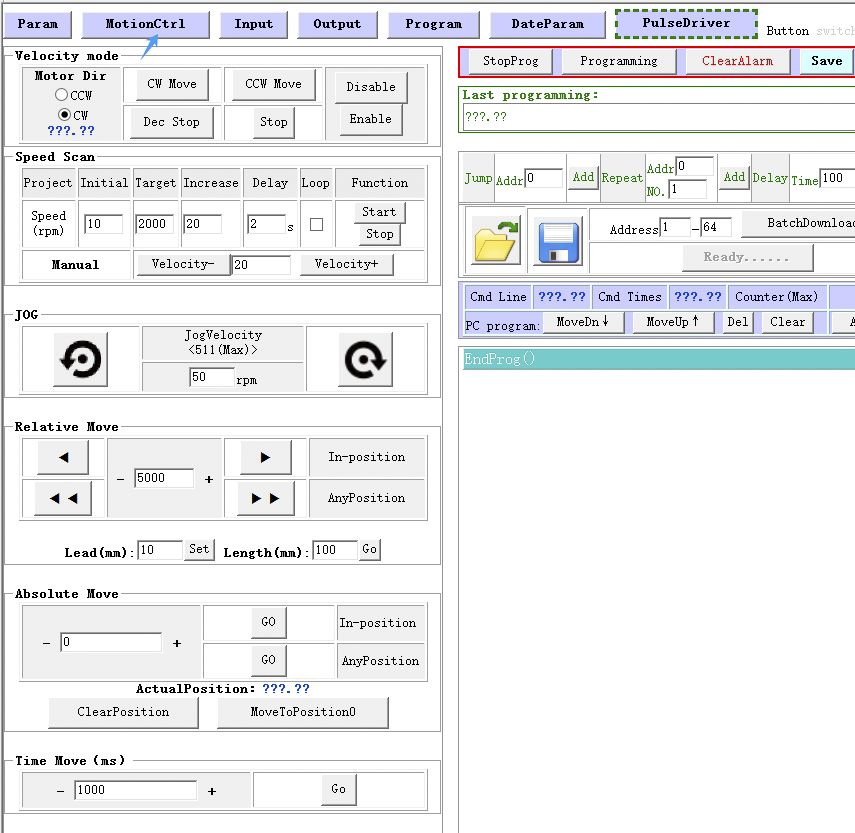

RS485 Stepper Motor Controller Manual

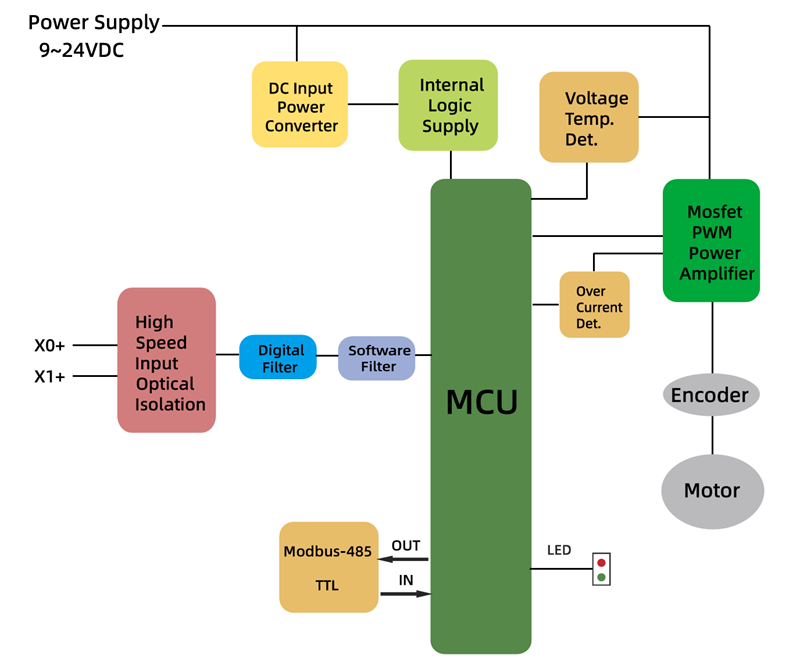

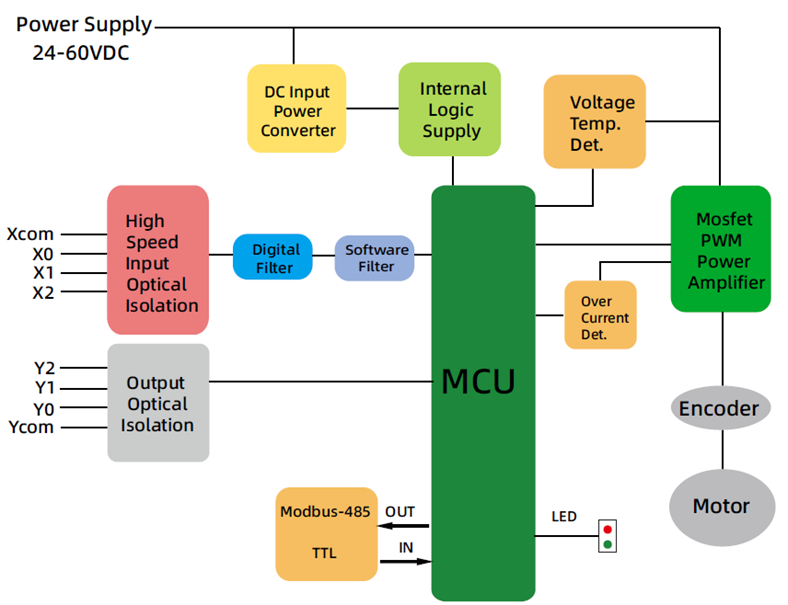

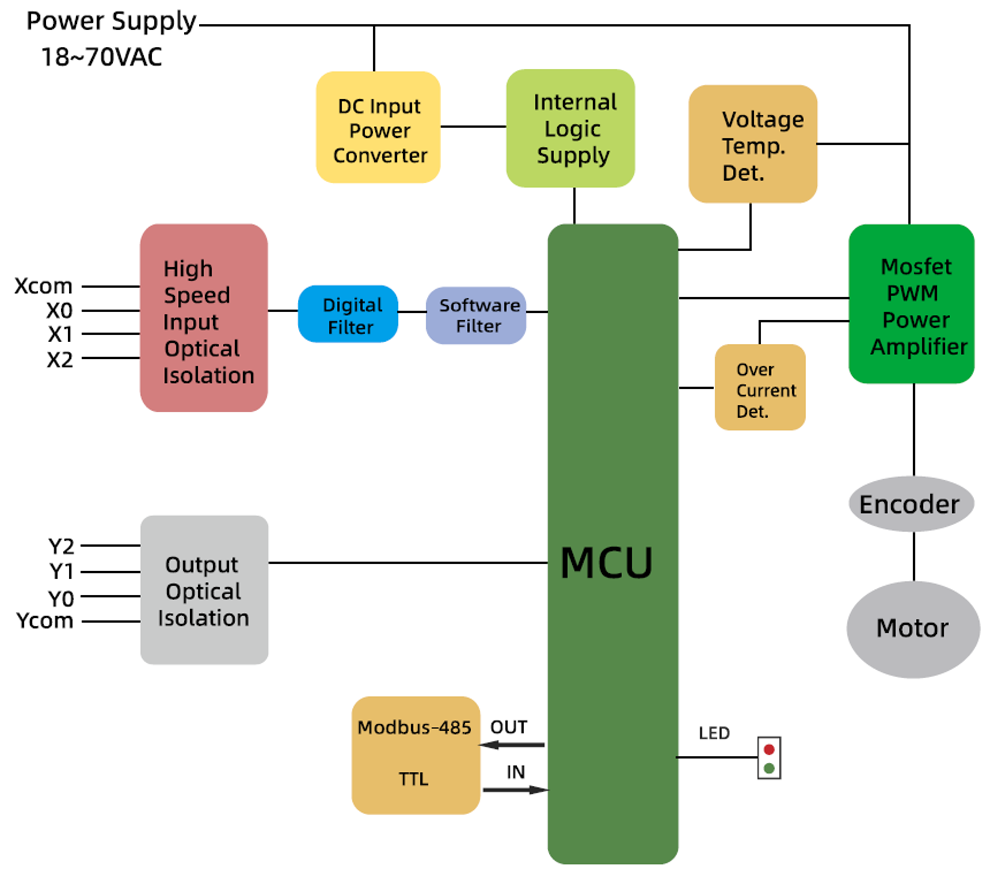

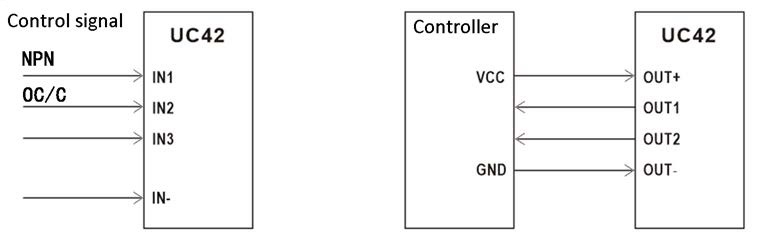

Block Diagram:

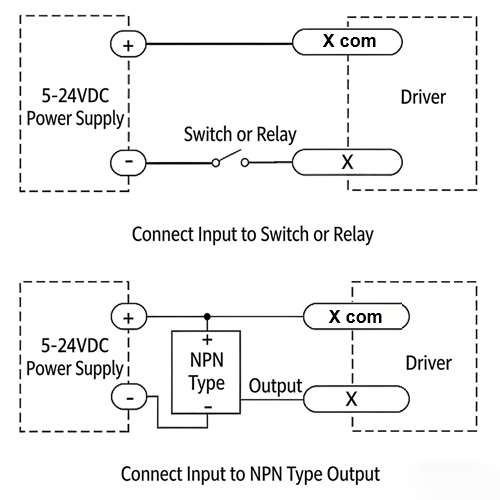

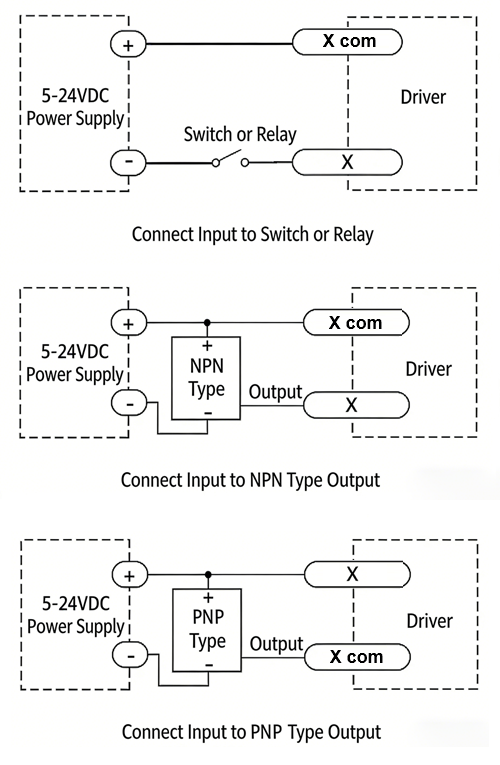

2  Input signals can directly receive 3.3-24V DC levels at high levels, Max. frequency of 400KHZ.
X0:  pulse input, IO start/stop, limit, direction, universal input.
X1  pulse input, IO start/stop, limit, direction, universal input.
...

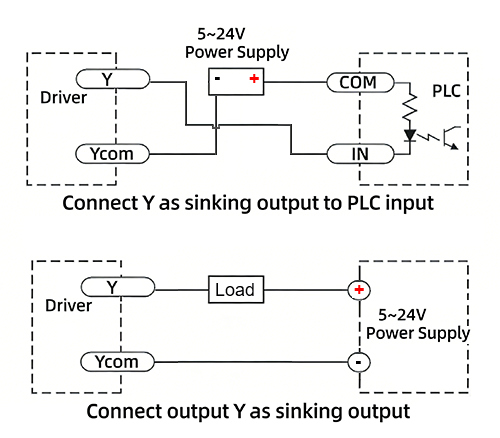

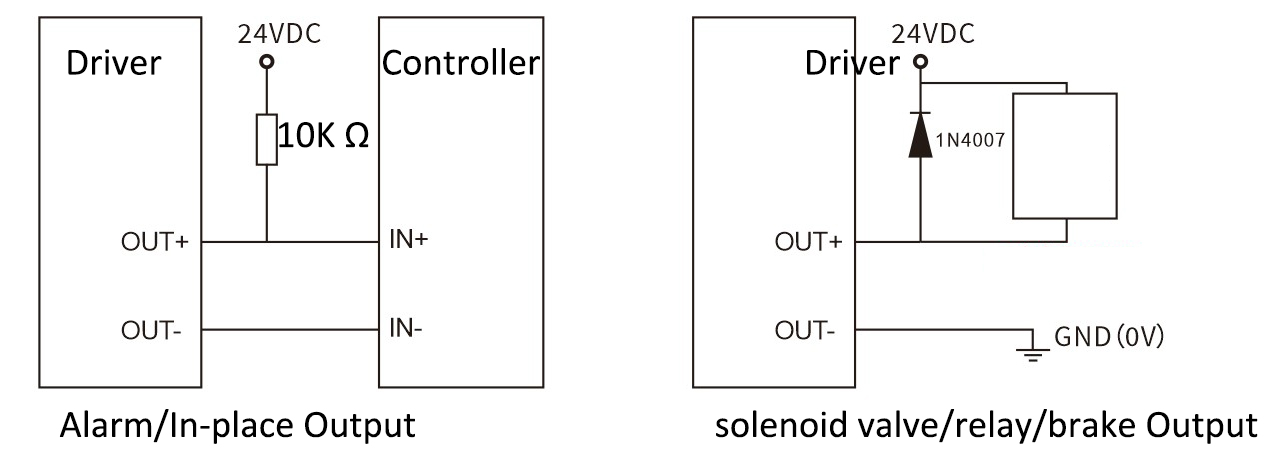

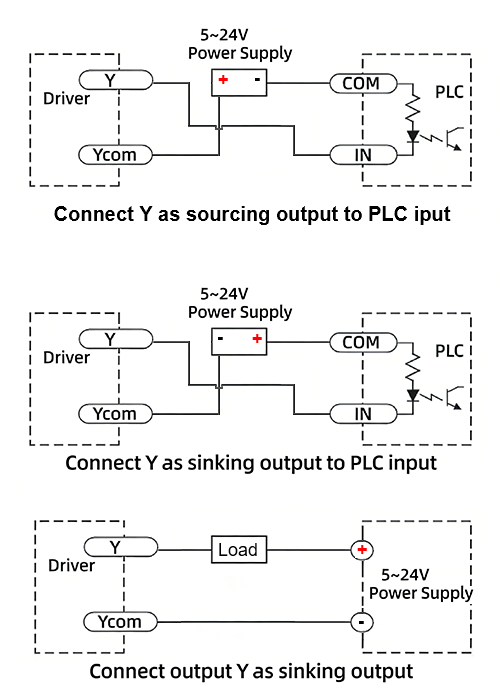

1 Output signal, maximum withstand voltage 30V, maximum input or output current 30mA
 Y0 : alarm output, universal output, and factory default alarm output.

LED indicator and status:

more Information on detail, please feel free to contact me

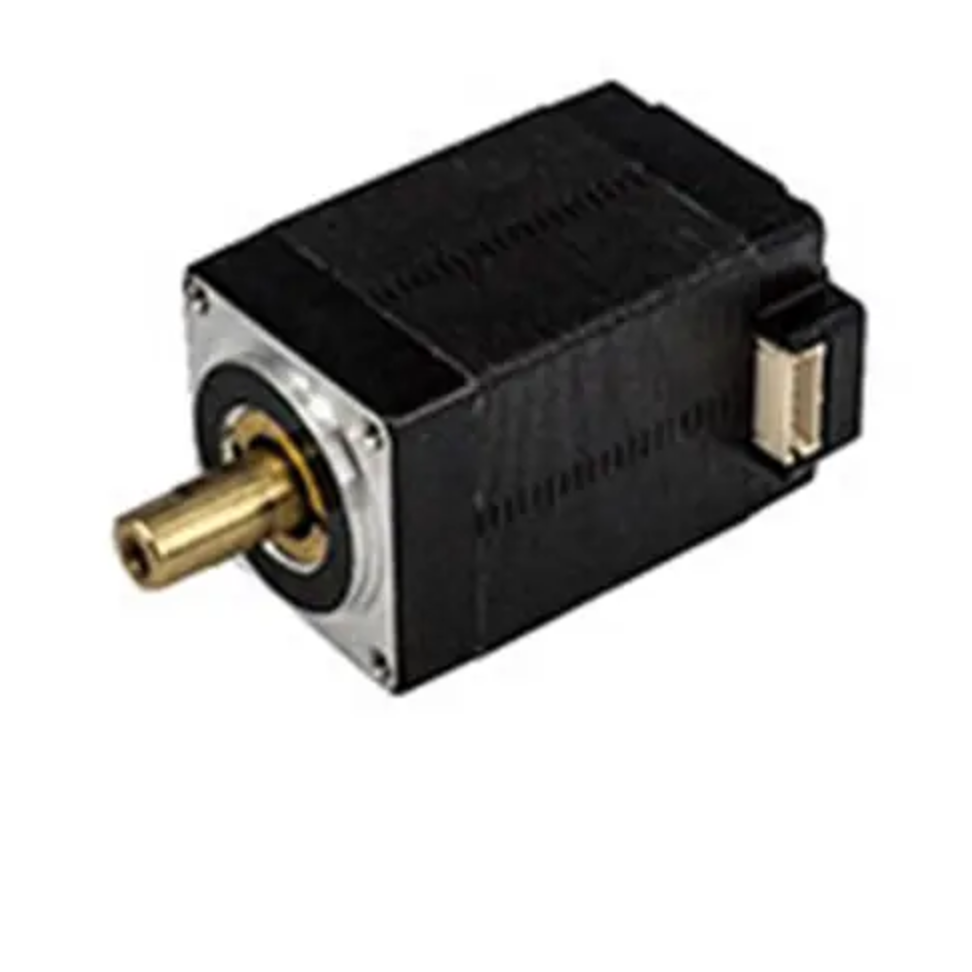

The IG11 series integrated motor is the perfect combination of drive and stepper motor,
which perfectly integrates stepper motor and drive technology, also built in 1000 line encoder,
it can save installation space, Simultaneously saving design and production costs,
supporting RS485 and TTL communication.

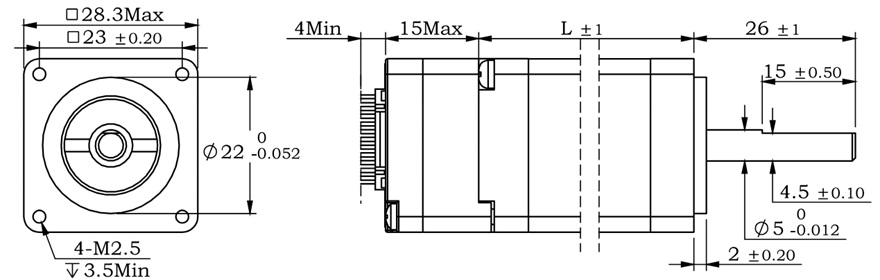

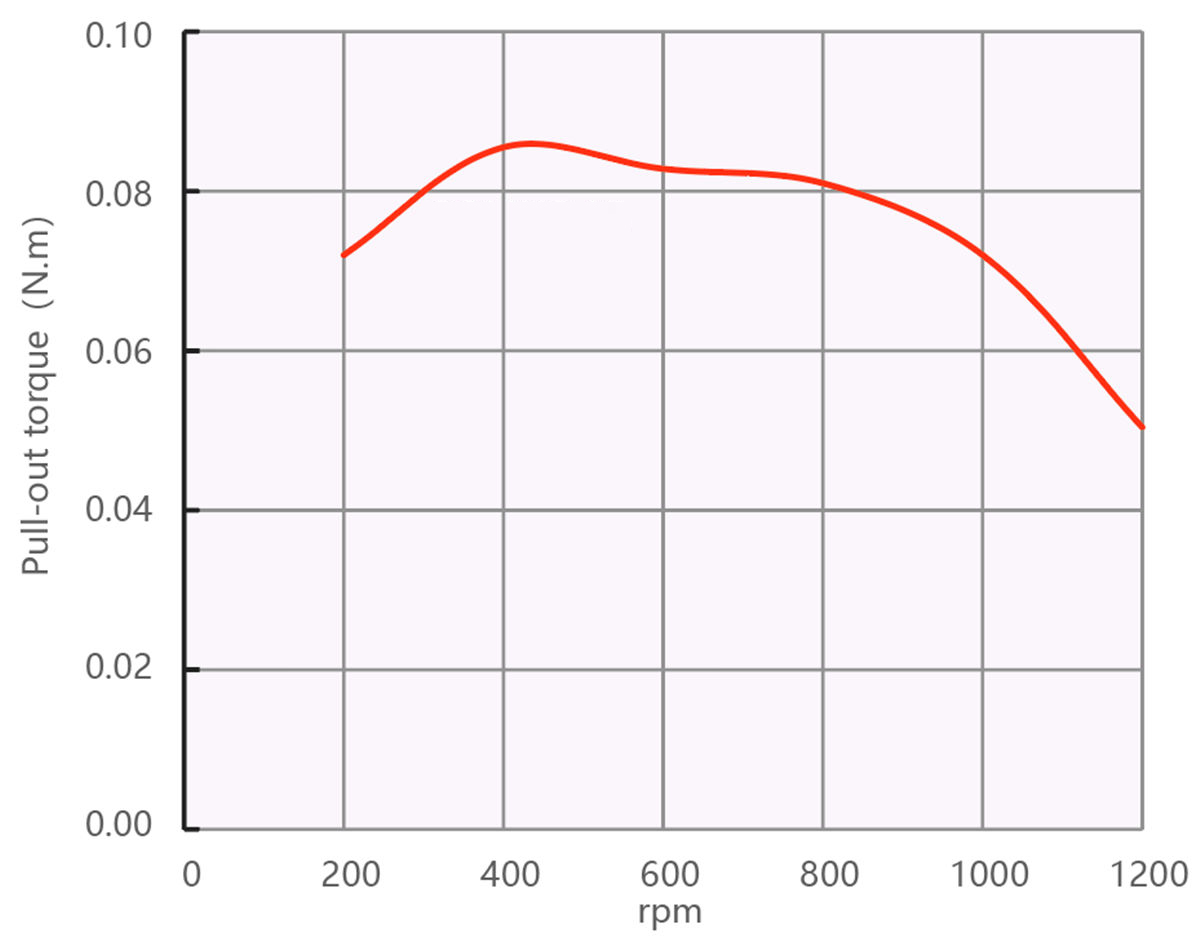

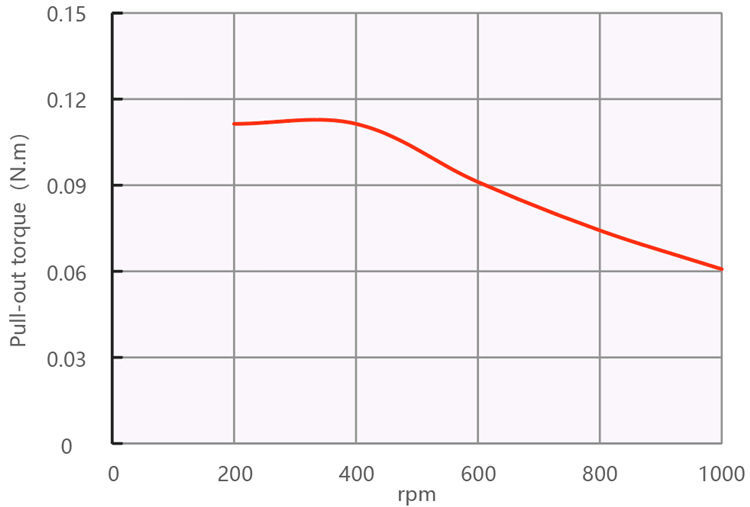

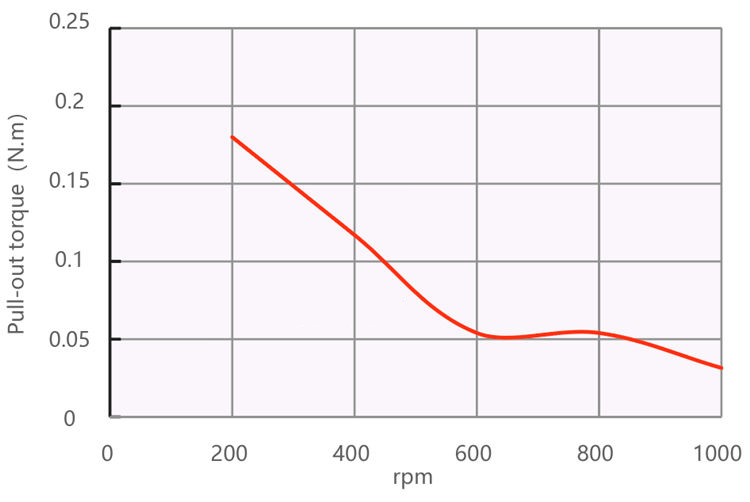

Motor Parameters

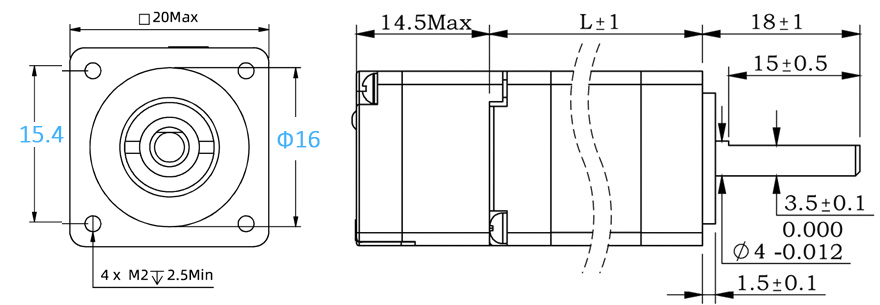

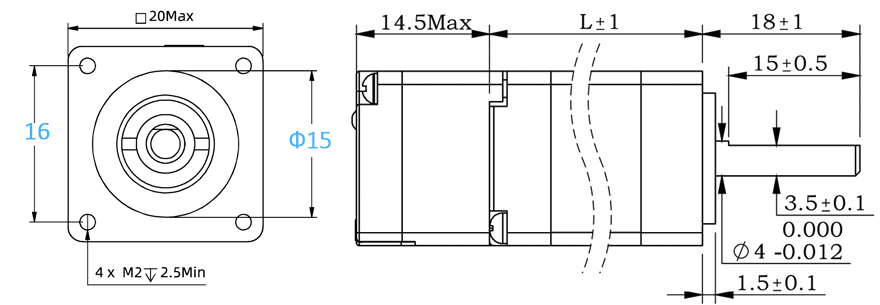

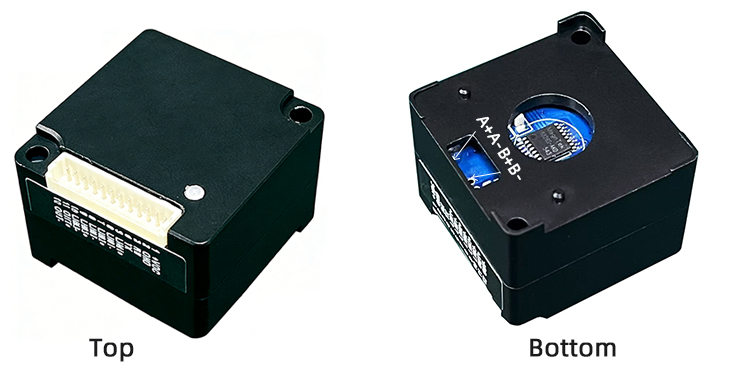

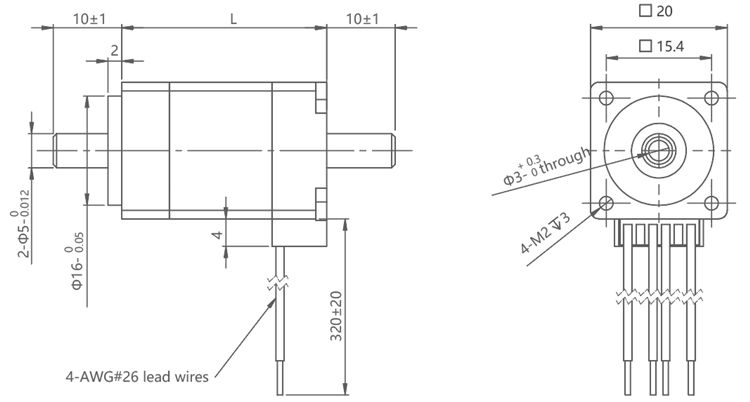

NEMA11 integrated Stepper Motor:

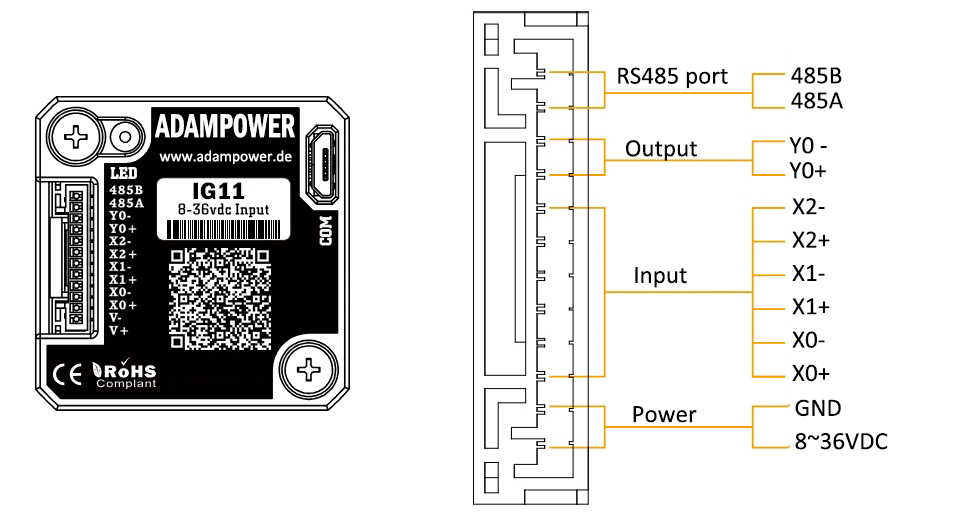

 Wiring Diagram:

Block Diagram:

2  Input signals can directly receive 3.3-24V DC levels at high levels, Max. frequency of 400KHZ.
X0:  pulse input, IO start/stop, limit, direction, universal input.
X1  pulse input, IO start/stop, limit, direction, universal input.
...

1 Output signal, maximum withstand voltage 30V, maximum input or output current 30mA
 Y0 : alarm output, universal output, and factory default alarm output.

LED indicator and status:

more Information on detail, please feel free to contact me

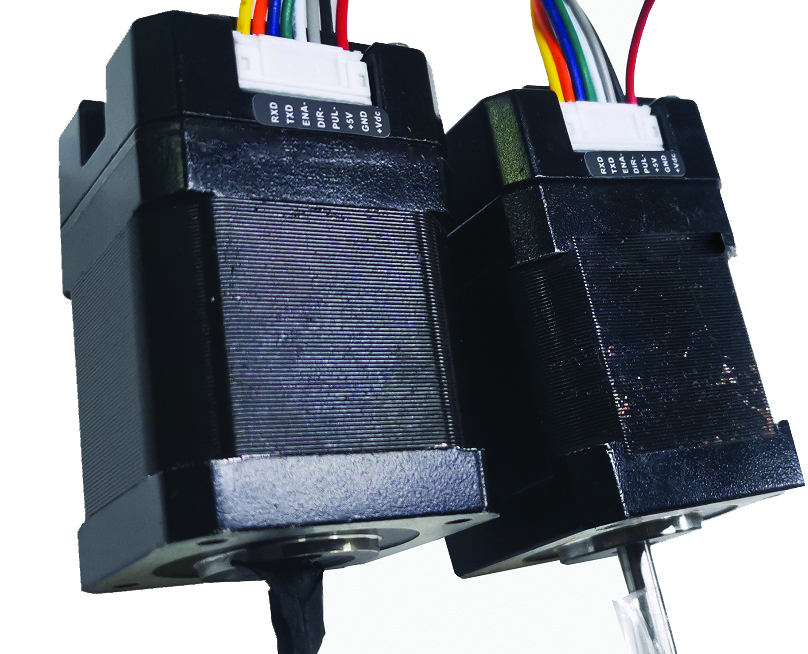

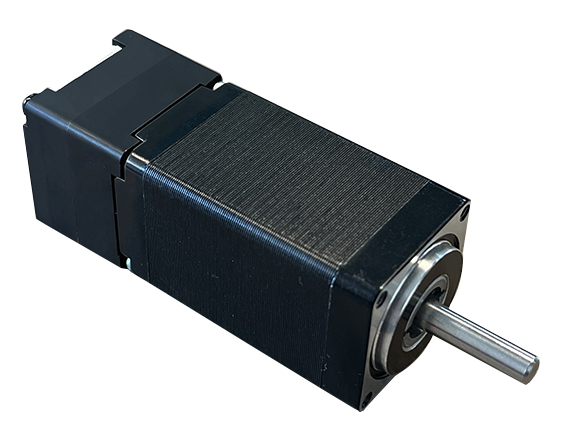

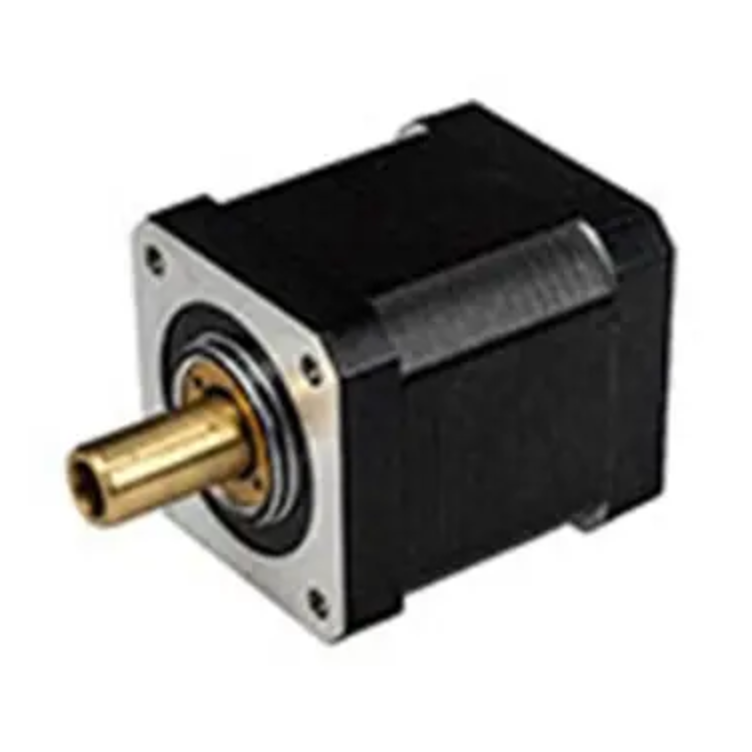

The IG14 series integrated motor is the perfect combination of drive and stepper motor,
which perfectly integrates stepper motor and drive technology, also built in 1000 line encoder,
it can save installation space, Simultaneously saving design and production costs,
supporting RS485 and TTL communication.

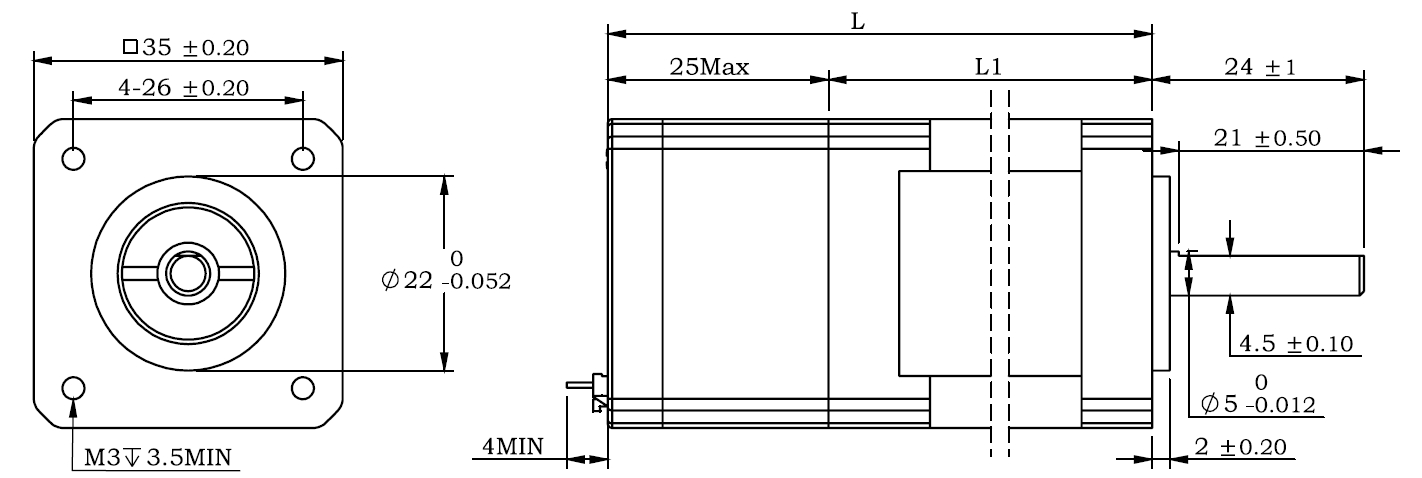

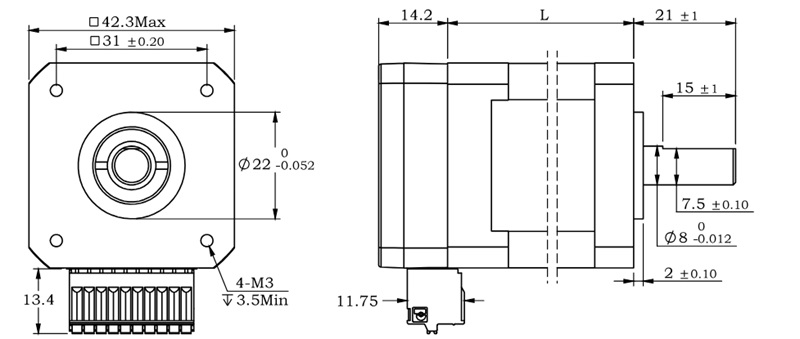

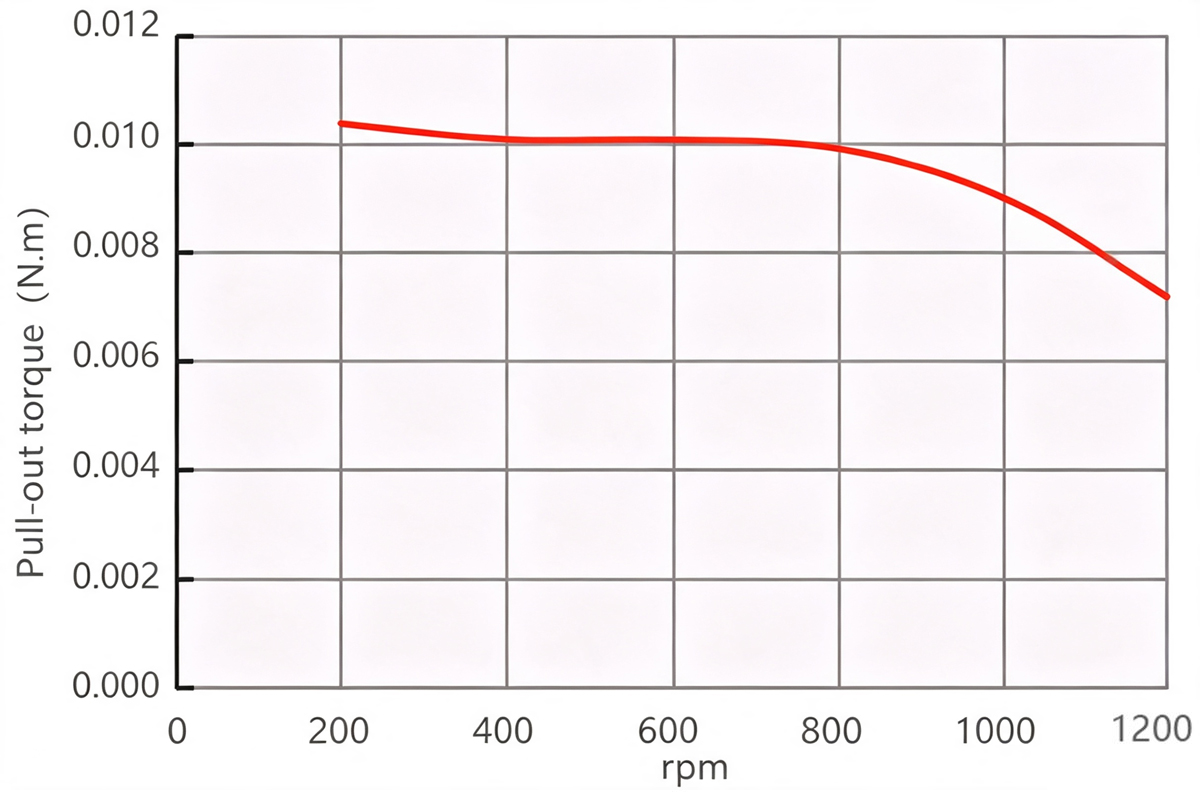

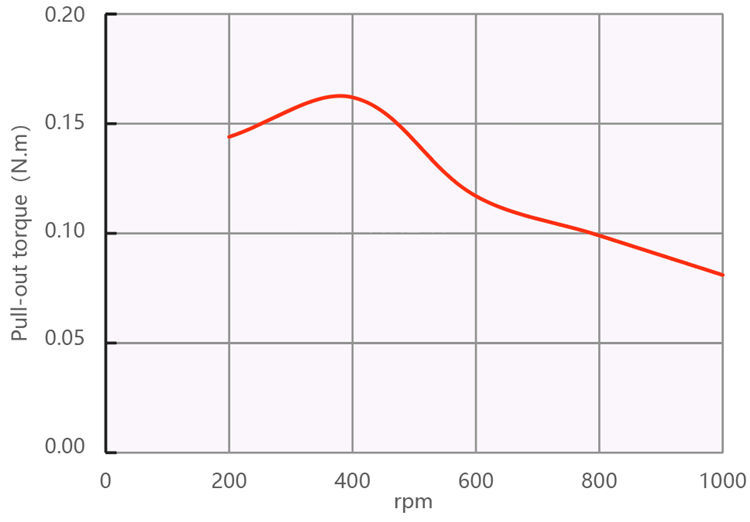

Motor Parameters

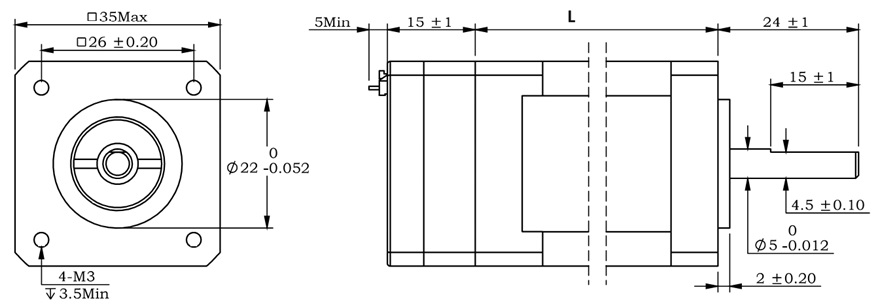

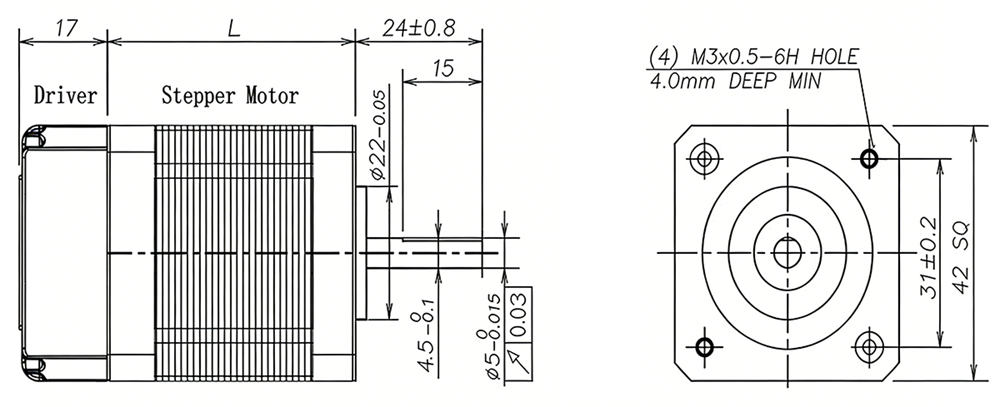

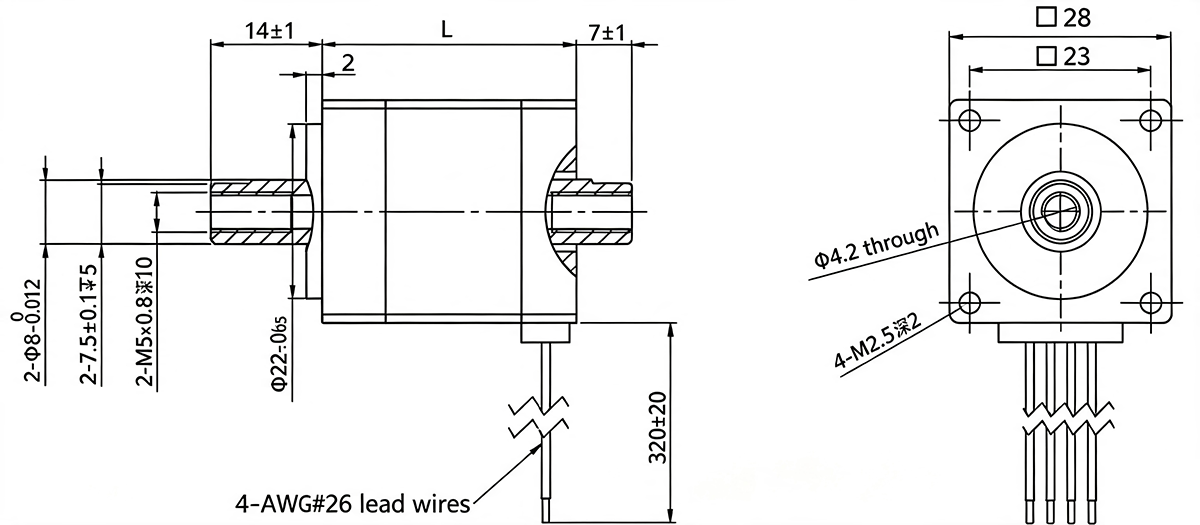

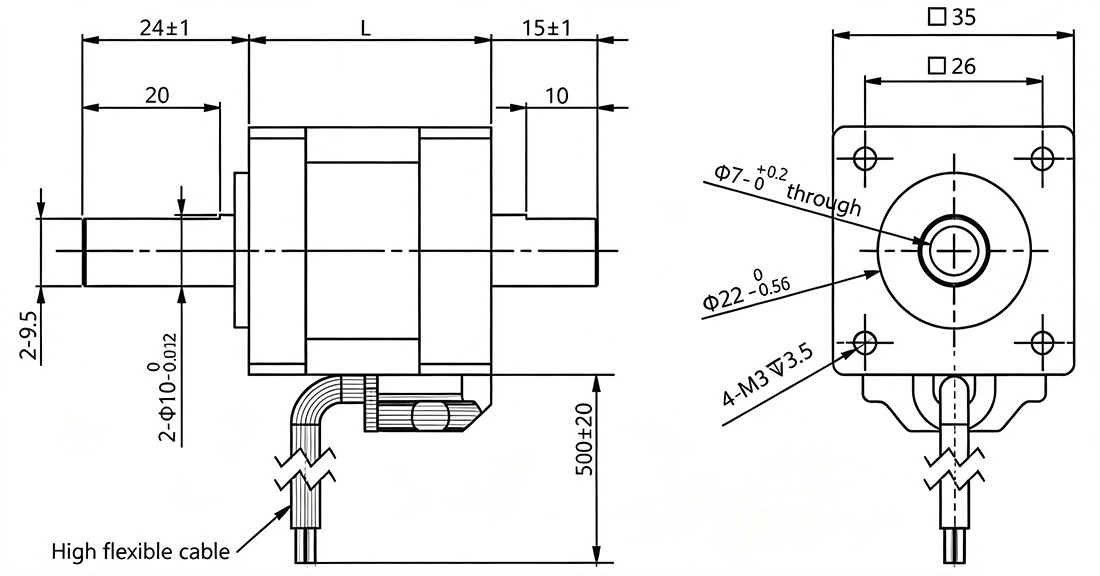

Pulse type NEMA14 integrated Stepper Motor:

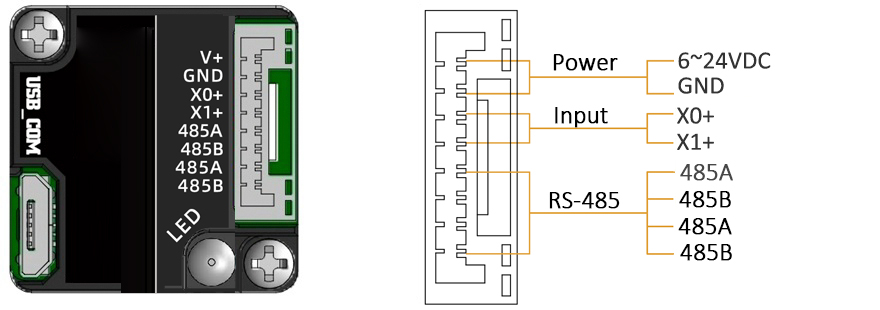

RS485 type NEMA14 integrated Stepper Motor:

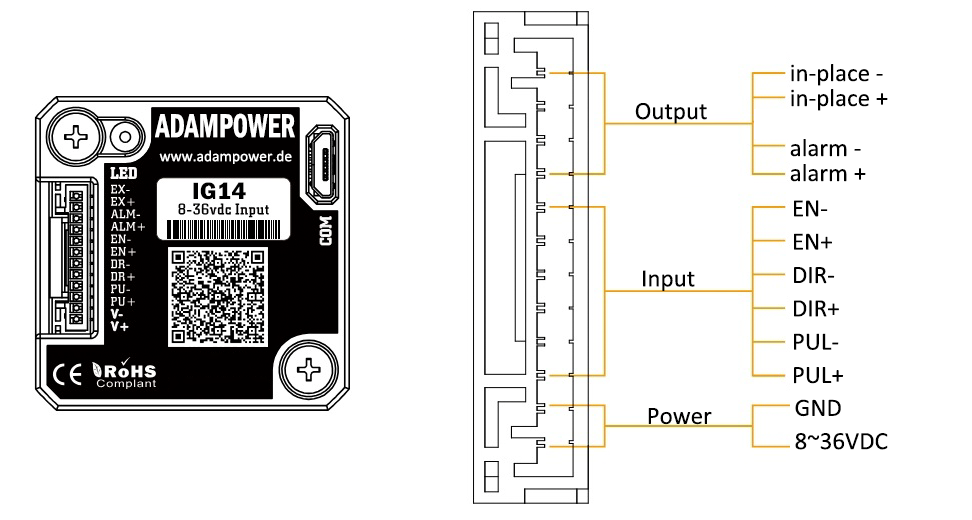

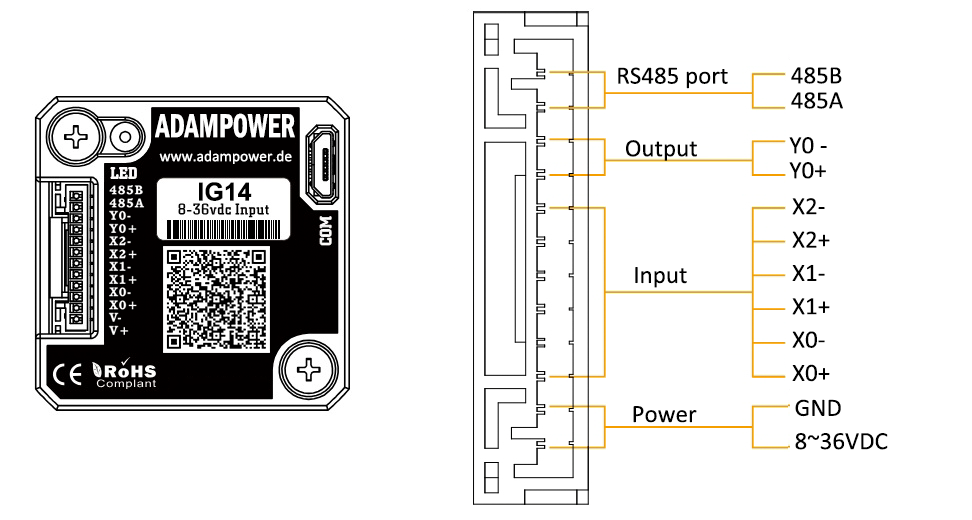

Wiring Diagram:

Block Diagram:

2  Input signals can directly receive 3.3-24V DC levels at high levels, Max. frequency of 400KHZ.
X0:  pulse input, IO start/stop, limit, direction, universal input.
X1  pulse input, IO start/stop, limit, direction, universal input.
...

1 Output signal, maximum withstand voltage 30V, maximum input or output current 30mA
 Y0 : alarm output, universal output, and factory default alarm output.

LED indicator and status:

more Information on detail, please feel free to contact me

The IG24 series integrated motor is the perfect combination of drive and stepper motor,
which perfectly integrates stepper motor and drive technology, also built in 1000 line encoder,
it can save installation space, Simultaneously saving design and production costs,
supporting RS485 and TTL communication.

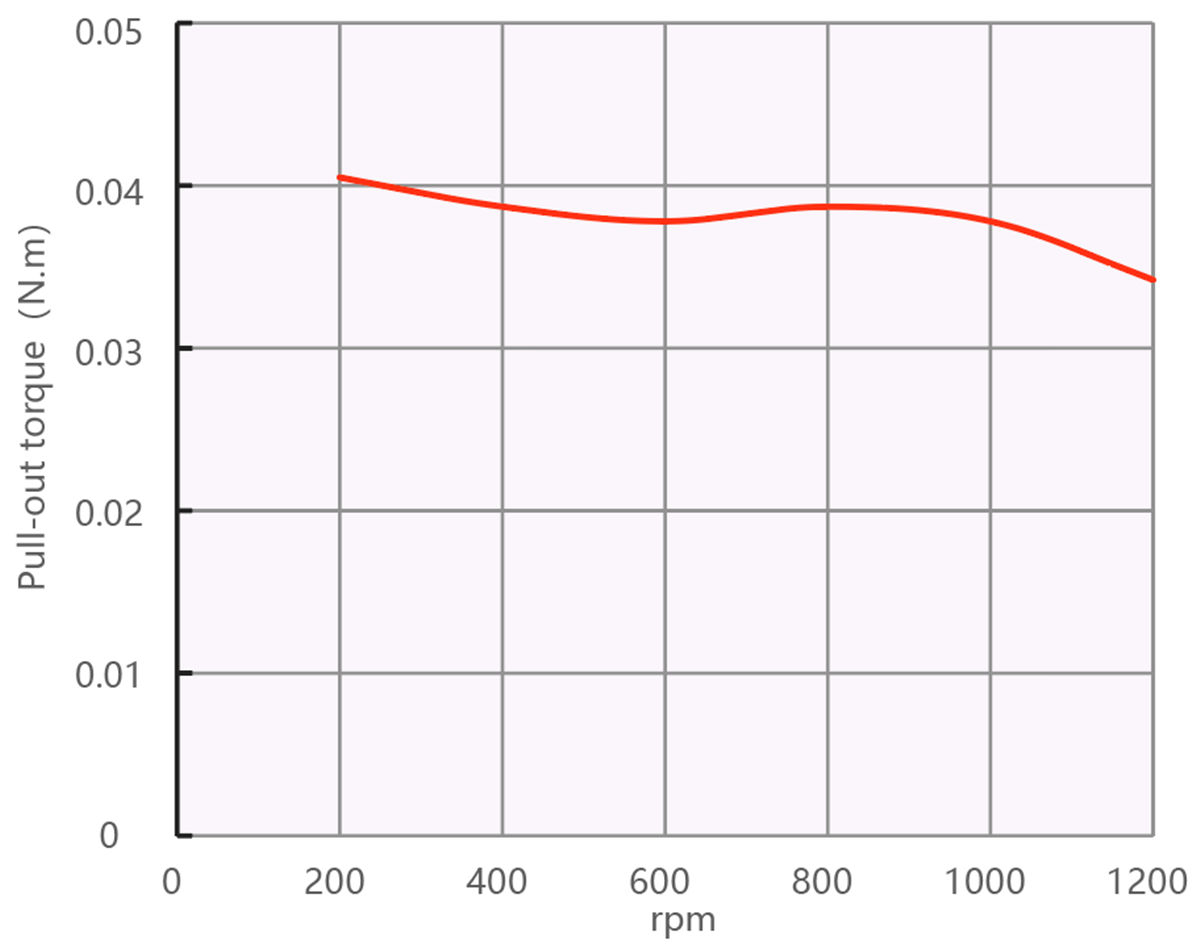

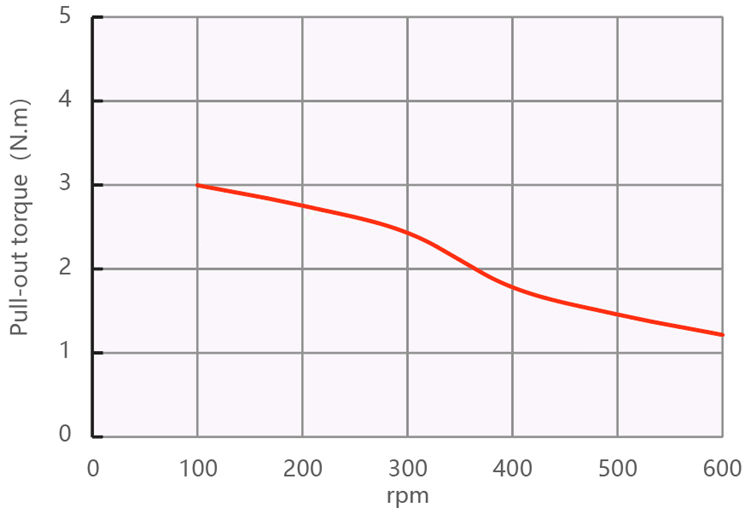

Motor Parameters

 Wiring Diagram:

2. RS485 Type Integrated Stepper Motor, Terminal Definition

Terminal Definition

Terminal	Name	Description
1	V	24~60VDC
2	V-	GND
3	X0 (PU )	Optoelectronic isolation, differential, High level can directly receive 3.3-24VDC, with a minimum pulse width of 2us, The maximum pulse frequency is 400KHz, which can be used as a universal input port for Pulse/Direction/Enable
4	X0-(PU-)
5	X1 (DR )
6	X1-(DR-)
7	X2 (EN )
8	X2-(EN-)
9	Y0 (AL )	The default alarm output port can detect the driver alarm status and provide feedback to the main station. Other functions can be set through communication
10	Y0-(AL-)
11	485A	RS485 Communication port, default baud rate is 115200
12	485B

Set Device ID for RS485 integrated Stepper Motor by SW1 ~ SW5:

SW6 is used to set the terminal resistance;   OFF=0 ohms; ON=120 ohms

---

CRC Check Routine (C#)

UInt16 Funct_CRC16(unsigned char * puchMsg, UInt16 DataLen)
{
UInt16 i,j,tmp;
UInt16 crcdata=0xFFFF;
for(i=0;i<DataLen;i )
{

crcdata=(*puchMsg)^crcdata;
puchMsg ;
for(j=0;j<8;j )
{
tmp=crcdata&0x0001;
crcdata=crcdata>>1;
if(tmp){
crcdata=crcdata^0xA001;
}
}
}
return crcdata;
}

---

Software Tools for RS485 Control

Modbus Poll

Software in google drive

Step-Config

Github Project

 1. Extract the zip file, open CommFile folder and Click Step-Config.exe or Adampower.exe

2. Open Project.

3. Click Browse

4. Select the Project.prj  in the Project folder, in the same path as CommFile.

5. Double Click the Project.prj path

 6. Right Click Modbus_485, and Click Property:

 7. Click Property ComNN, Choose COM port, Baud rate and click Save and OK.


 8. Start to use software control the RS485 Integrated stepper motor by below buttons:

RS485 Stepper Motor Controller Manual

Block Diagram:

2  Input signals can directly receive 3.3-24V DC levels at high levels, Max. frequency of 400KHZ.
X0:  pulse input, IO start/stop, limit, direction, universal input.
X1  pulse input, IO start/stop, limit, direction, universal input.
...

1 Output signal, maximum withstand voltage 30V, maximum input or output current 30mA
 Y0 : alarm output, universal output, and factory default alarm output.

LED indicator and status:

more Information on detail, please feel free to contact me

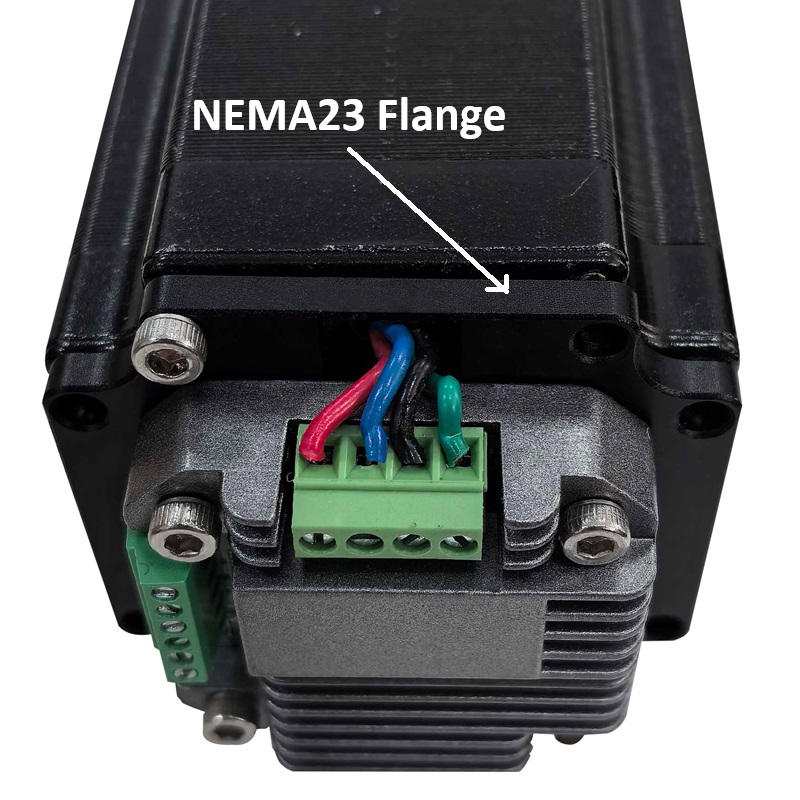

The IG23 series integrated motor is the perfect combination of drive and stepper motor,
which perfectly integrates stepper motor and drive technology, also built in 1000 line encoder,
it can save installation space, Simultaneously saving design and production costs,
supporting RS485 and TTL communication.

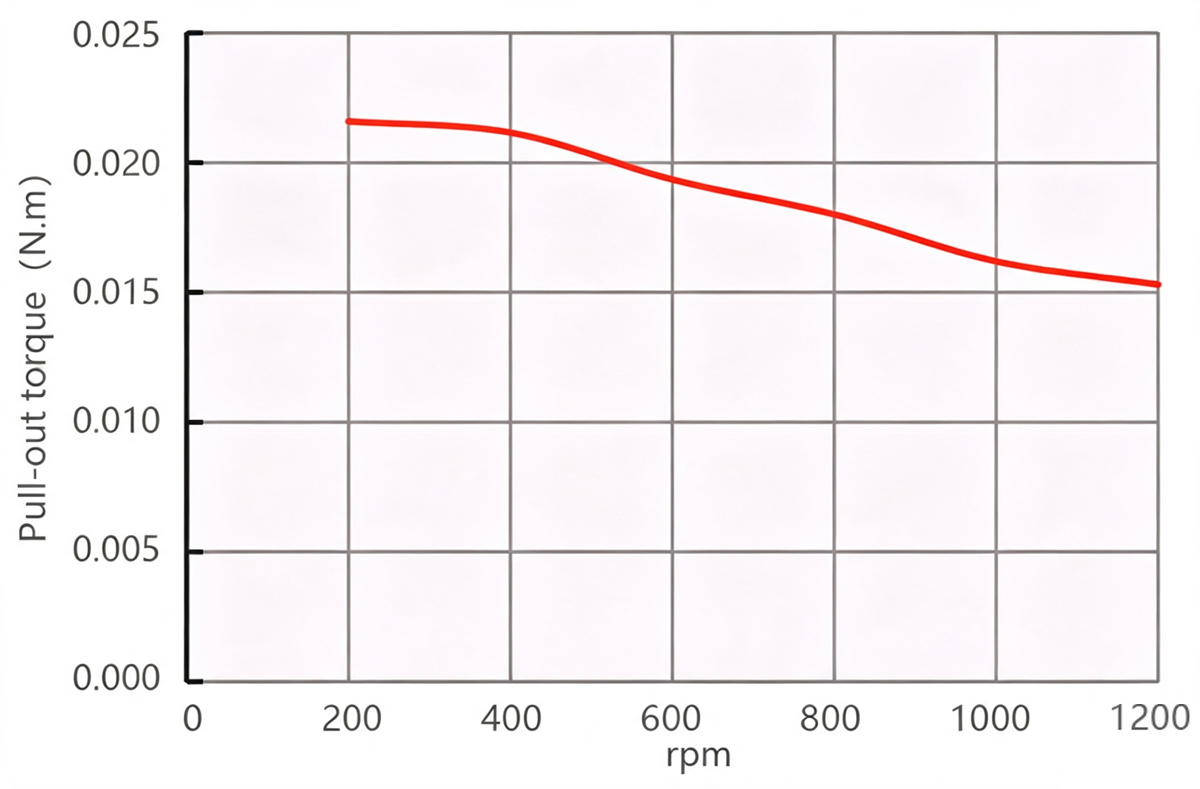

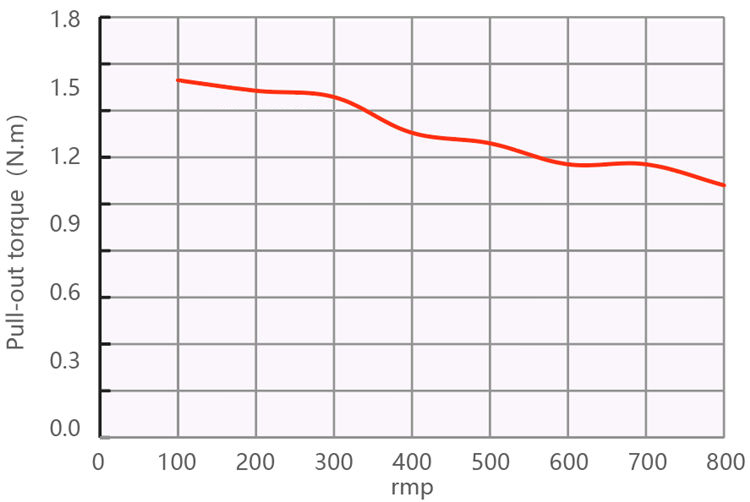

Motor Parameters

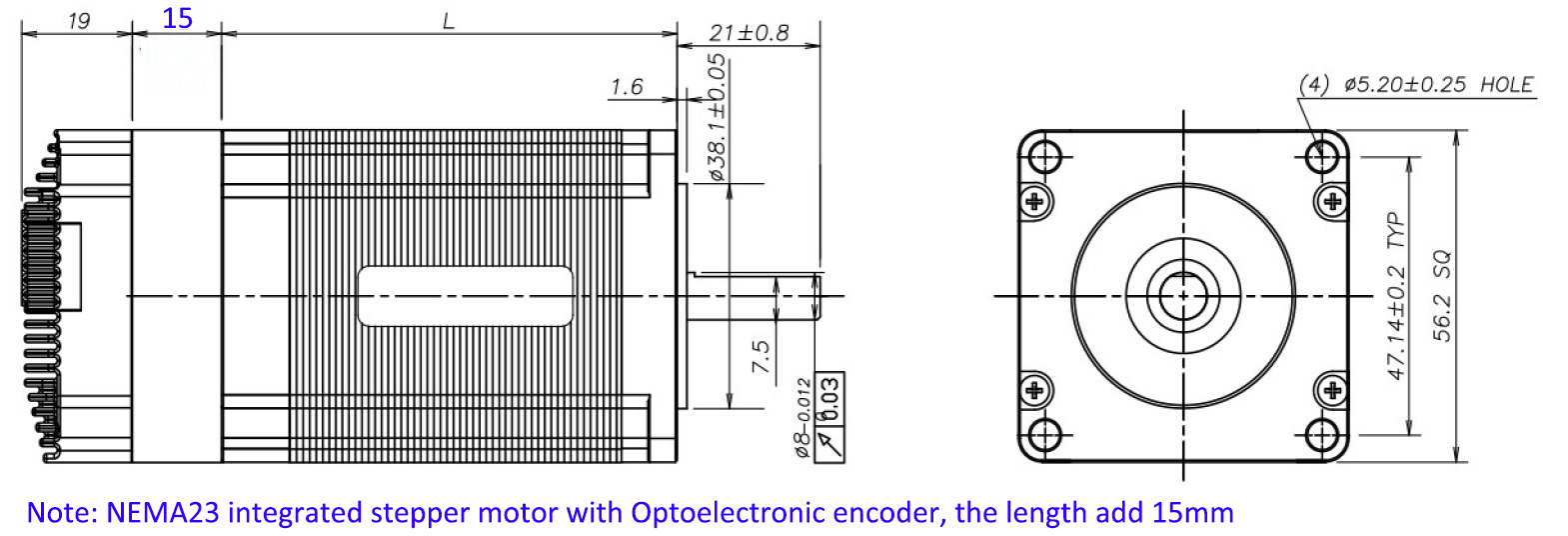

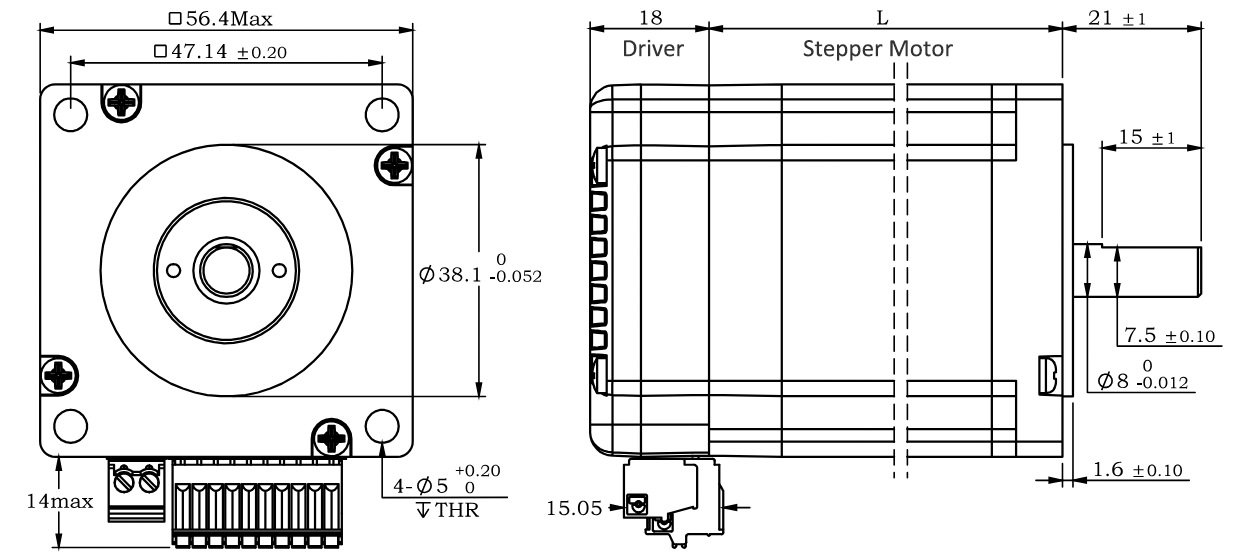

Wiring Diagram:

2. RS485 Type Integrated Stepper Motor, Terminal Definition

Terminal Definition

Terminal	Name	Description
1	V	24~60VDC
2	V-	GND
3	X0 (PU )	Optoelectronic isolation, differential, High level can directly receive 3.3-24VDC, with a minimum pulse width of 2us, The maximum pulse frequency is 400KHz, which can be used as a universal input port for Pulse/Direction/Enable
4	X0-(PU-)
5	X1 (DR )
6	X1-(DR-)
7	X2 (EN )
8	X2-(EN-)
9	Y0 (AL )	The default alarm output port can detect the driver alarm status and provide feedback to the main station. Other functions can be set through communication
10	Y0-(AL-)
11	485A	RS485 Communication port, default baud rate is 115200
12	485B

Set Device ID for RS485 integrated Stepper Motor by SW1 ~ SW5:

SW6 is used to set the terminal resistance; OFF=0 ohms; ON=120 ohms

---

CRC Check Routine (C#)

UInt16 Funct_CRC16(unsigned char * puchMsg, UInt16 DataLen)
{
UInt16 i,j,tmp;
UInt16 crcdata=0xFFFF;
for(i=0;i<DataLen;i )
{

crcdata=(*puchMsg)^crcdata;
puchMsg ;
for(j=0;j<8;j )
{
tmp=crcdata&0x0001;
crcdata=crcdata>>1;
if(tmp){
crcdata=crcdata^0xA001;
}
}
}
return crcdata;
}

---

Software Tools for RS485 Control

Modbus Poll

Software in google drive

Adampower

Github Project

 1. Extract the zip file, open CommFile folder and Click Step-Config.exe or Adampower.exe

2. Open Project.

3. Click Browse

4. Select the Project.prj in the Project folder, in the same path as CommFile.

5. Double Click the Project.prj path

6. Right Click Modbus_485, and Click Property:

7. Click Property ComNN, Choose COM port, Baud rate and click Save and OK.


8. Start to use software control the RS485 Integrated stepper motor by below buttons:

RS485 Stepper Motor Controller Manual

Block Diagram:

2 Input signals can directly receive 3.3-24V DC levels at high levels, Max. frequency of 400KHZ.
X0: pulse input, IO start/stop, limit, direction, universal input.
X1 pulse input, IO start/stop, limit, direction, universal input.
...

1 Output signal, maximum withstand voltage 30V, maximum input or output current 30mA
Y0 : alarm output, universal output, and factory default alarm output.

LED indicator and status:

more Information on detail, please feel free to contact me

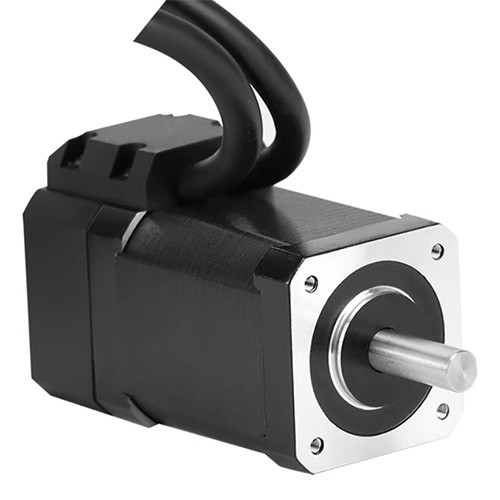

The IG17 series integrated motor is the perfect combination of drive and stepper motor,
which perfectly integrates stepper motor and drive technology, also built in 1000 line encoder,
it can save installation space, Simultaneously saving design and production costs,
supporting RS485 and TTL communication.

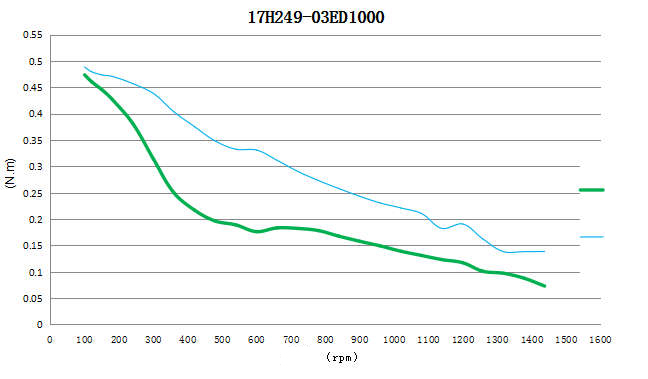

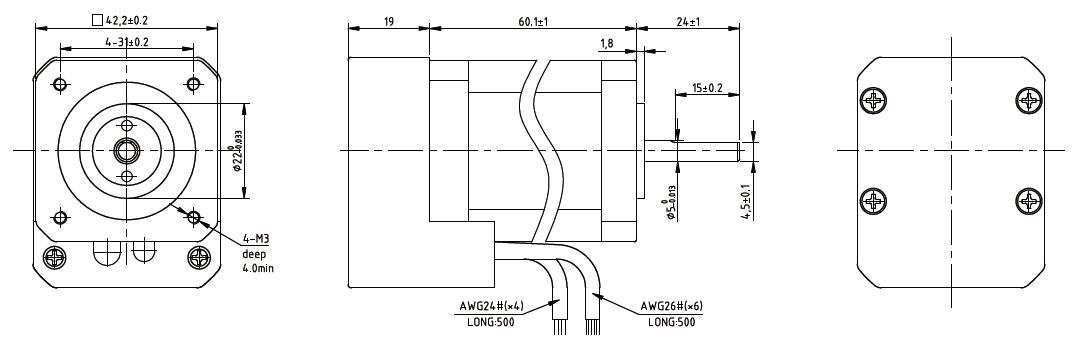

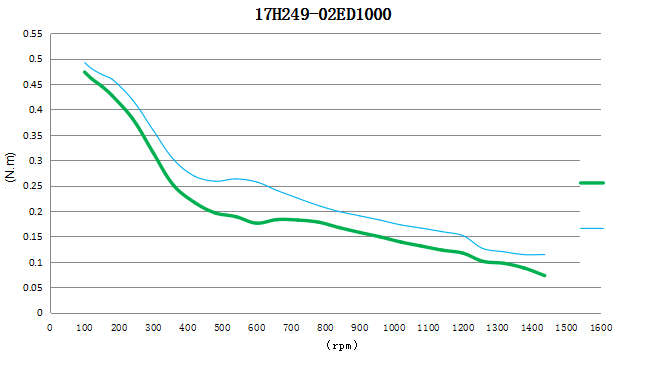

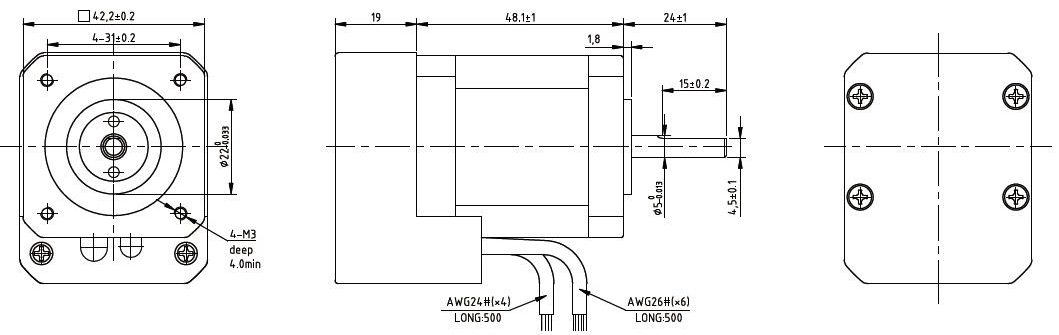

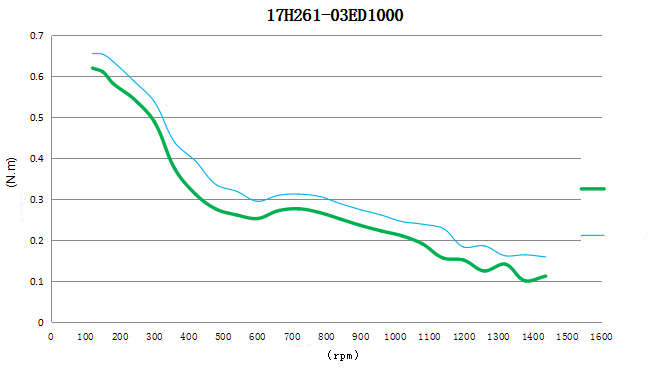

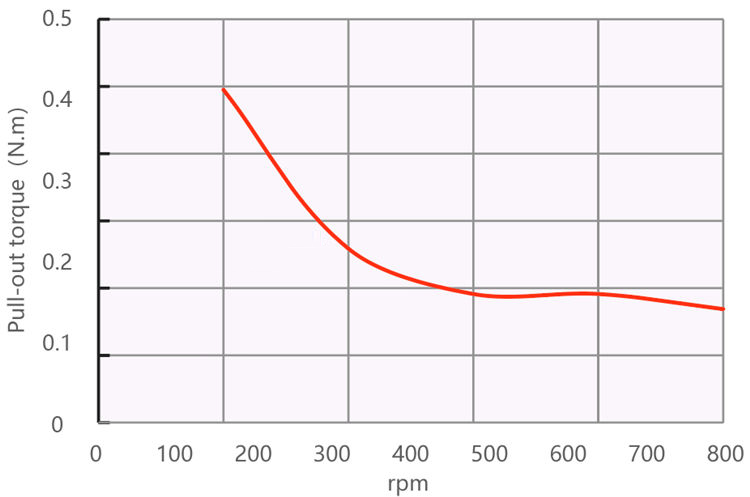

Motor Parameters

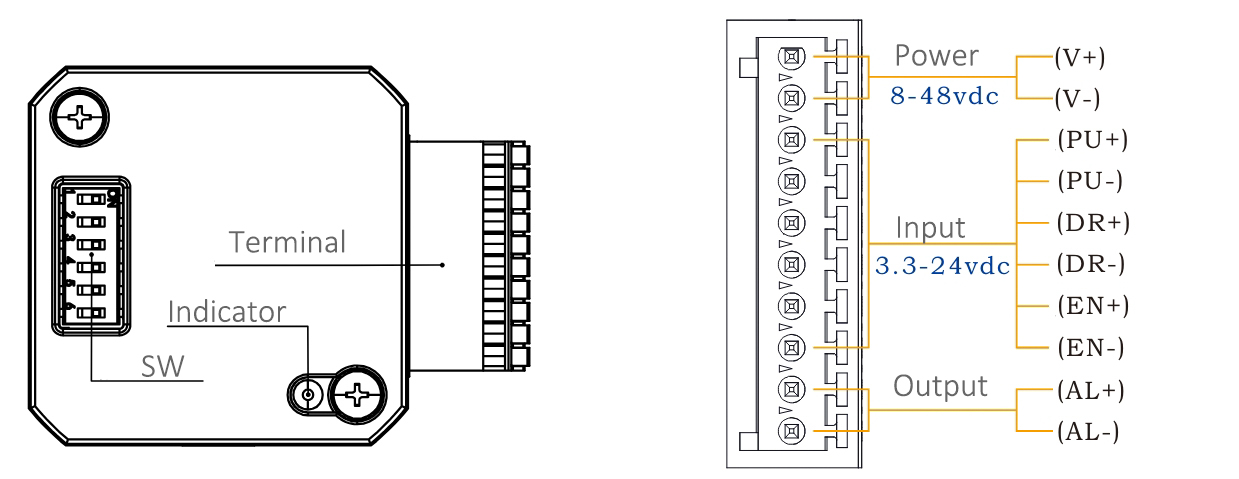

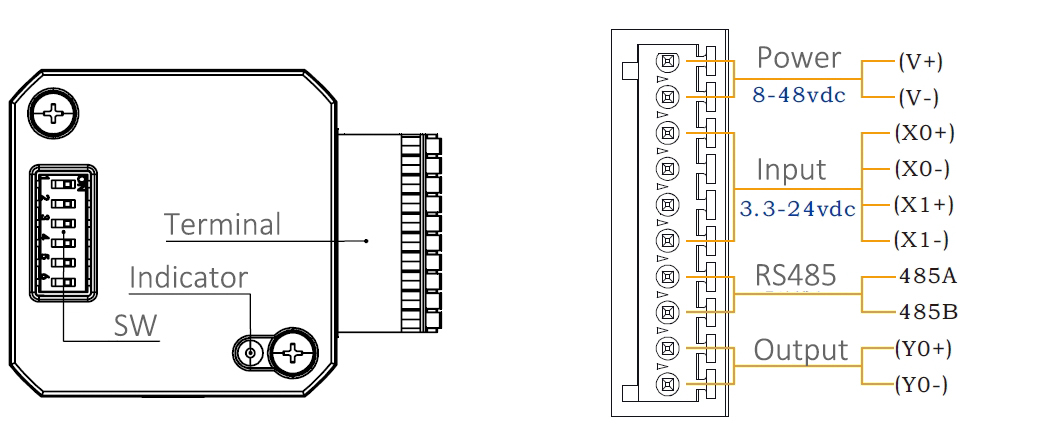

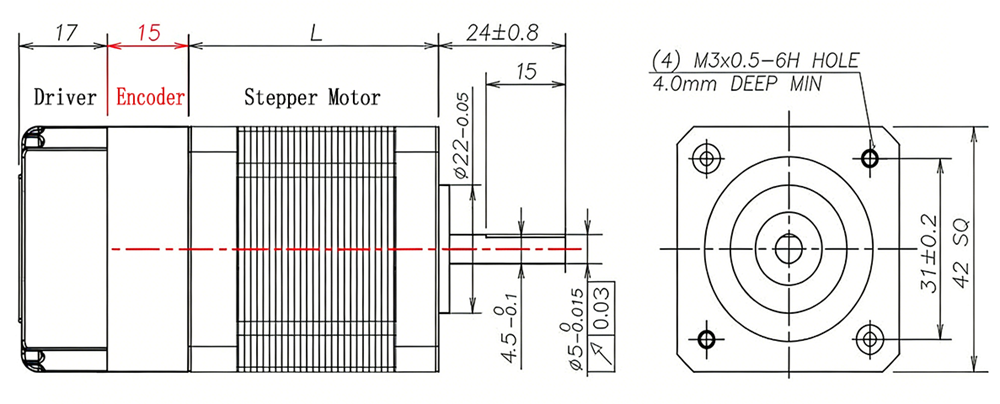

Wiring Diagram:

2. RS485 Type Integrated Stepper Motor, Terminal Definition

Terminal Definition

Terminal	Name	Description
1	V	8-48VDC
2	V-	GND
3	X0 (PU )	Optoelectronic isolation, differential, High level can directly receive 3.3-24VDC, with a minimum pulse width of 2us, The maximum pulse frequency is 400KHz, which can be used as a universal input port or a high-speed pulse input port
4	X0-(PU-)
5	X1 (DR )
6	X1-(DR-)
7	485A(EN )	RS485 Communication port, default baud rate is 115200,
8	485B(EN-)
9	Y0 (AL )	The default alarm output port can detect the driver alarm status and provide feedback to the main station. Other functions can be set through communication
10	Y0-(AL-)

Set Device ID for RS485 integrated Stepper Motor by SW1 ~ SW5:

SW6 is used to set the terminal resistance; OFF=0 ohms; ON=120 ohms

---

CRC Check Routine (C#)

UInt16 Funct_CRC16(unsigned char * puchMsg, UInt16 DataLen)
{
UInt16 i,j,tmp;
UInt16 crcdata=0xFFFF;
for(i=0;i<DataLen;i )
{

crcdata=(*puchMsg)^crcdata;
puchMsg ;
for(j=0;j<8;j )
{
tmp=crcdata&0x0001;
crcdata=crcdata>>1;
if(tmp){
crcdata=crcdata^0xA001;
}
}
}
return crcdata;
}

---

Software Tools for RS485 Control

Modbus Poll

Software in google drive

Step-Config

Github Project

 1. Extract the zip file, open CommFile folder and Click Step-Config.exe or Adampower.exe

2. Open Project.

3. Click Browse

4. Select the Project.prj  in the Project folder, in the same path as CommFile.

5. Double Click the Project.prj path

 6. Right Click Modbus_485, and Click Property:

 7. Click Property ComNN, Choose COM port, Baud rate and click Save and OK.


 8. Start to use software control the RS485 Integrated stepper motor by below buttons:

RS485 Stepper Motor Controller Manual

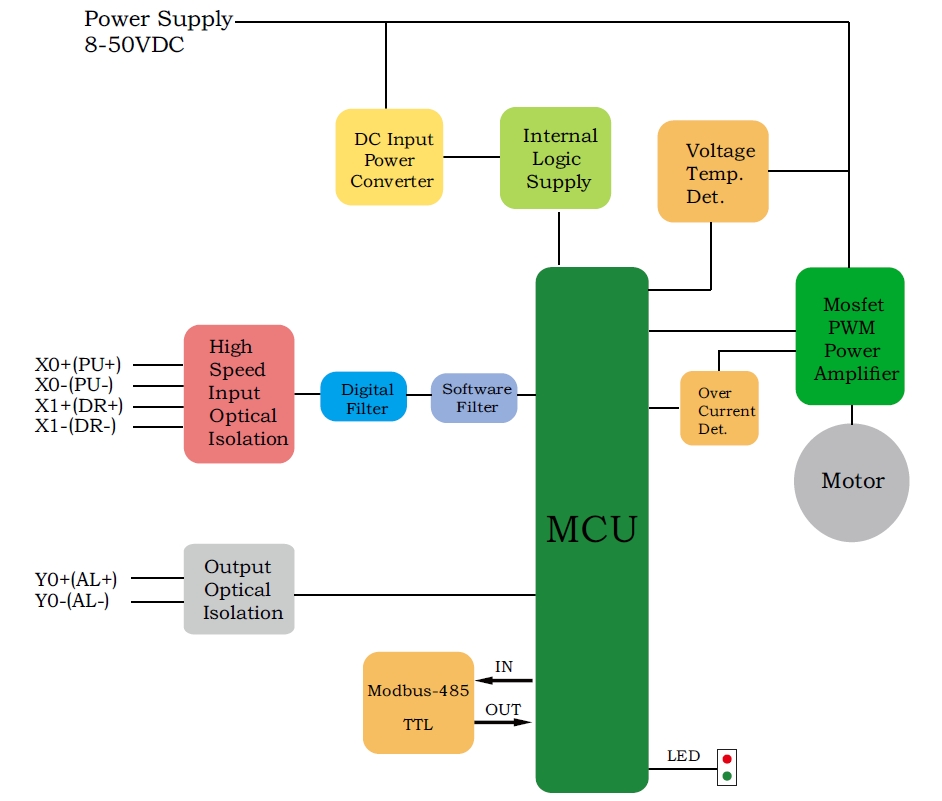

Block Diagram:

2  Input signals can directly receive 3.3-24V DC levels at high levels, Max. frequency of 400KHZ.
X0:  pulse input, IO start/stop, limit, direction, universal input.
X1  pulse input, IO start/stop, limit, direction, universal input.
...

1 Output signal, maximum withstand voltage 30V, maximum input or output current 30mA
 Y0 : alarm output, universal output, and factory default alarm output.

LED indicator and status:

more Information on detail, please feel free to contact me

The IG8 series integrated motor is the perfect combination of drive and stepper motor,
which perfectly integrates stepper motor and drive technology, also built in 1000 line encoder,
it can save installation space, Simultaneously saving design and production costs,
supporting RS485 communication.

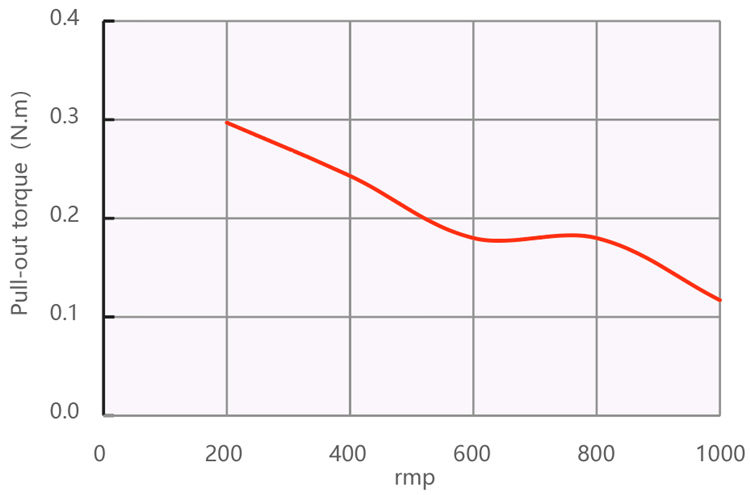

Motor Parameters
NEMA8 integrated Stepper Motor:

1. Pulse Type NEMA8 Integrated Stepper Motor, Terminal definition.

Terminal Definition

Terminal	Name	Description
1	V	6 ~ 24VDC
2	V-	GND
3	PU	Optoelectronic isolation, differential, High level can directly receive 3.3-24VDC, with a minimum pulse width of 2us, The maximum pulse frequency is 400KHz, which can be used as a universal input port Pulse/Direction
4	DR
5	EN	Optoelectronic isolation, differential, High level can directly receive 3.3-24VDC, with a minimum pulse width of 100us, The maximum pulse frequency is 10KHz, which can be used as a universal input port for Enable
6	COM-	Input common ground
7	AL	The default alarm output port can detect the driver alarm status and provide feedback to the main station. Other functions can be set through communication
8	AL-

2. RS-485 Type NEMA8 Integrated Stepper Motor, Terminal definition

CRC Check Routine (C#)

UInt16 Funct_CRC16(unsigned char * puchMsg, UInt16 DataLen)
{
UInt16 i,j,tmp;
UInt16 crcdata=0xFFFF;
for(i=0;i<DataLen;i )
{

crcdata=(*puchMsg)^crcdata;
puchMsg ;
for(j=0;j<8;j )
{
tmp=crcdata&0x0001;
crcdata=crcdata>>1;
if(tmp){
crcdata=crcdata^0xA001;
}
}
}
return crcdata;
}

---

Software Tools for RS485 Control

Modbus Poll

New Software in google drive

Adampower.exe

Github Project

 1. Extract the zip file, open CommFile folder and Click Step-Config.exe or Adampower.exe

2. Open Project.

3. Click Browse

4. Select the Project.prj  in the Project folder, in the same path as CommFile.

5. Double Click the Project.prj path

 6. Right Click Modbus_485, and Click Property:

 7. Click Property ComNN, Choose COM port, Baud rate and click Save and OK.


 8. Start to use software control the RS485 Integrated stepper motor by below buttons:

RS485 Stepper Motor Controller Manual

Block Diagram:

2  Input signals can directly receive 3.3-24V DC levels at high levels, Max. frequency of 400KHZ.
X0:  pulse input, IO start/stop, limit, direction, universal input.
X1  pulse input, IO start/stop, limit, direction, universal input.
...

1 Output signal, maximum withstand voltage 30V, maximum input or output current 30mA
 Y0 : alarm output, universal output, and factory default alarm output.

LED indicator and status:

more Information on detail, please feel free to contact me

The IM24ET Series Integrated Motors represent a perfect integration of stepper drivers and stepper motors, combining the technologies of both in a single unit.

They are fully compatible with 1599-revolution mechanical absolute encoders, which not only save installation space but also streamline wiring connections.

By reducing your design and production costs, they stand as the premier choice for your stepper system solutions.

Frame Size: NEMA24
 Holding Torque: 1.1–3.5 N·m
 Supply Voltage: 24–60 VDC
Supported Protocols: Modbus/RTU, RS485
Built-in Programmable Multi-Turn Feedback: 1599 revolutions; supports user-defined home position with memory, no sensor required
Software Limit Function Supported: More reliable than mechanical limit switches
Closed-Loop Control: 4096-line (16384 counts) encoder feedback
Torque Modes Supported: Homing on collision, constant torque, object gripping
Input Compatibility: 5–24 VDC; Output: Open-collector (OC) output, withstanding voltage up to 30 VDC
Comprehensive Protection Features: Over-voltage, under-voltage, over-current, winding open-circuit, and position deviation protection
Non-Volatile Memory: Configuration parameters stored in the on-chip FLASH of the MCU
Wide Filter Frequency Range: 50 kHz–5 MHz adjustable, factory default at 300 kHz
User-friendly PC interface with full-featured functionality

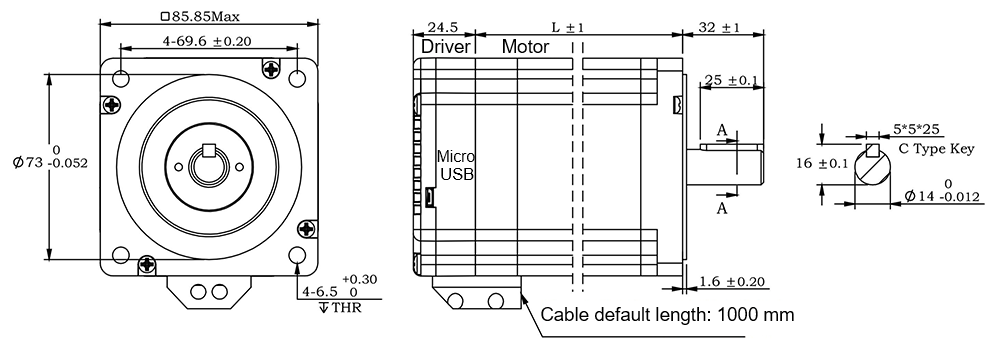

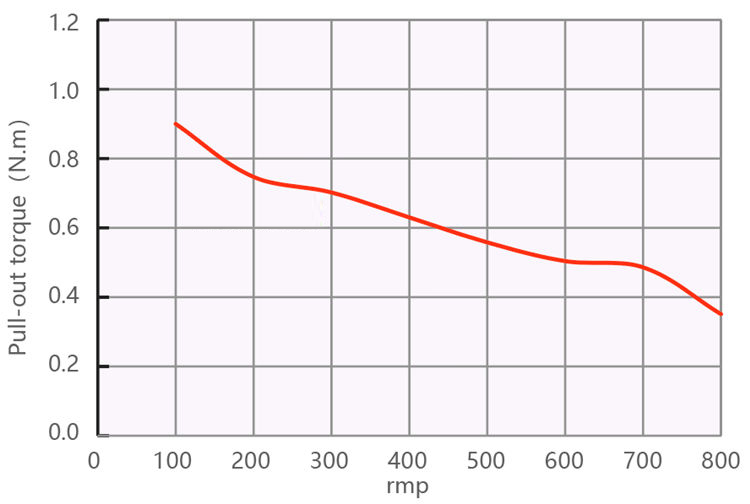

Motor Parameters (two type flange size and hole spacing)

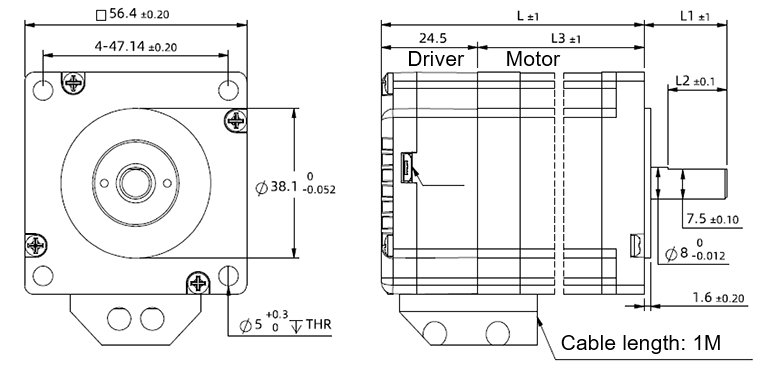

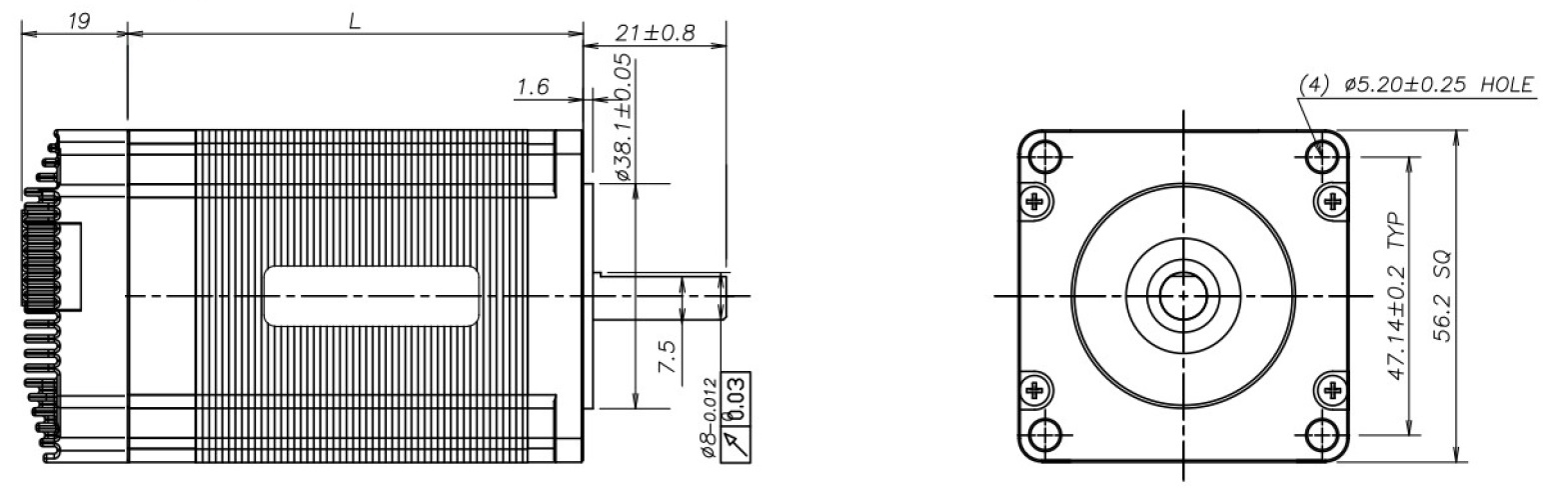

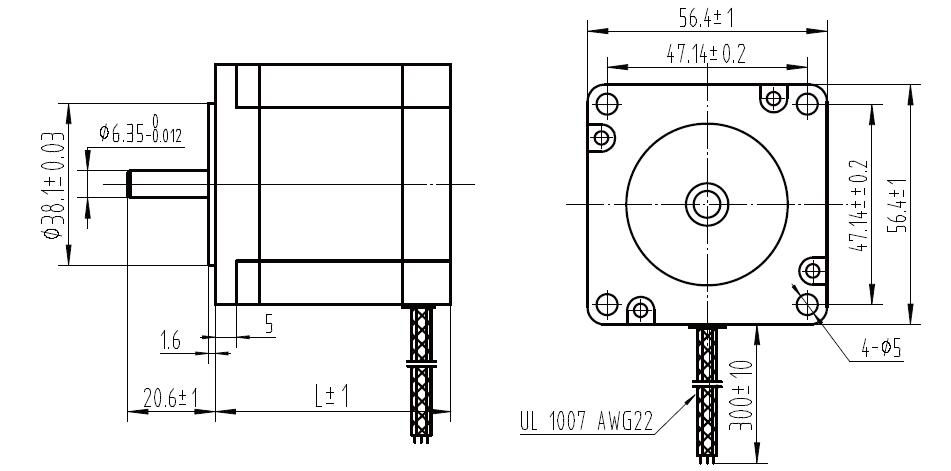

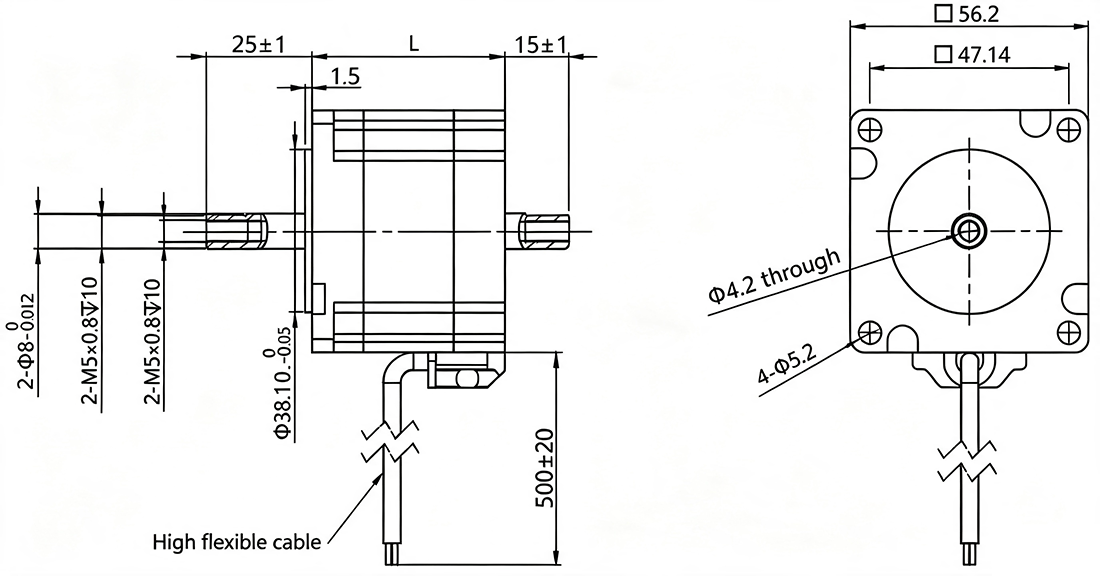

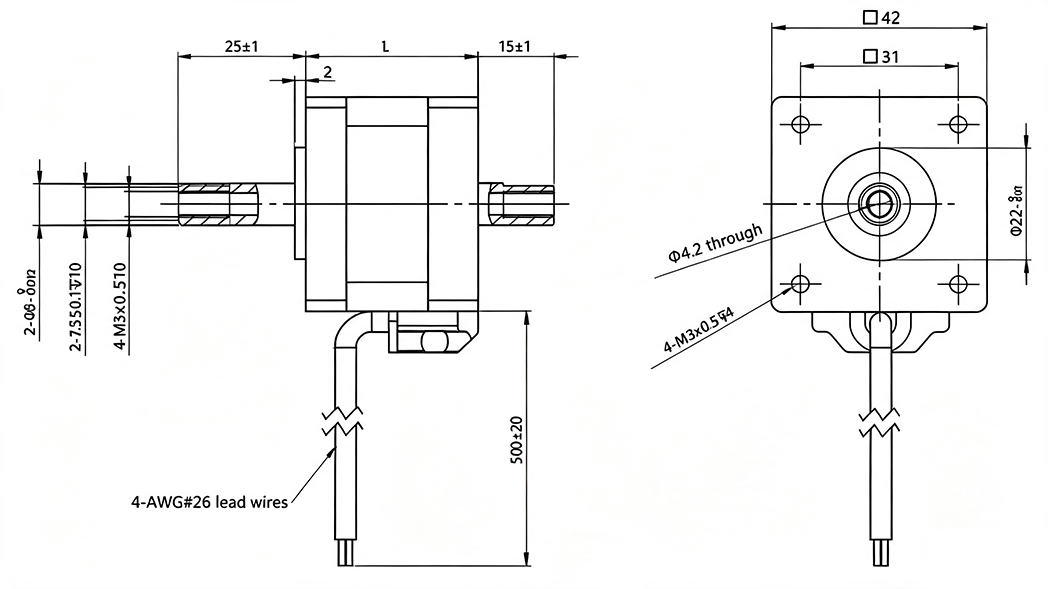

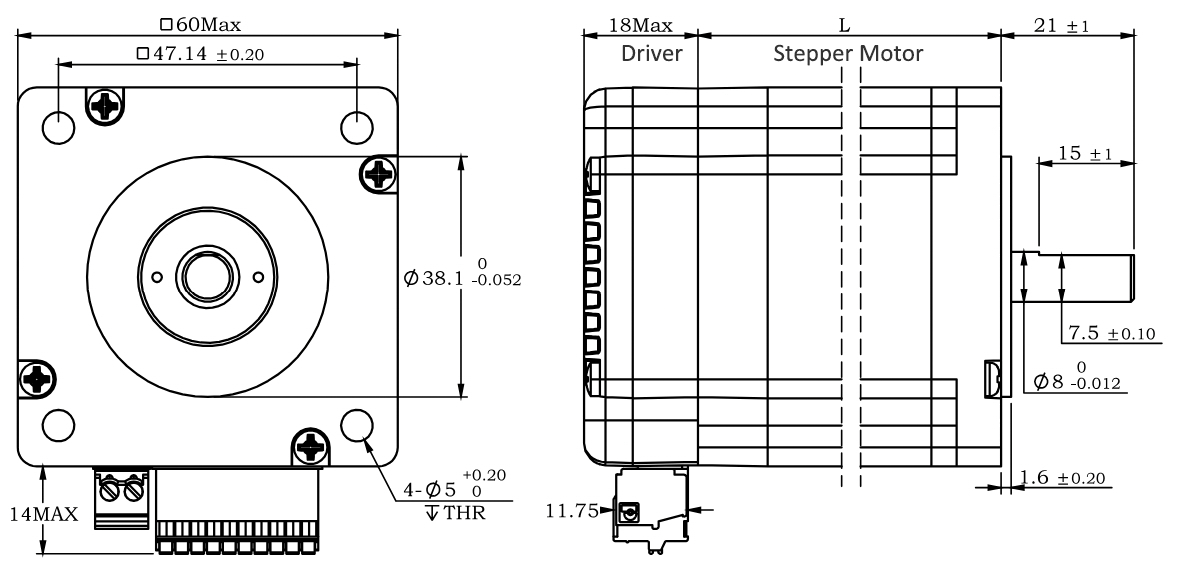

Flange Size: 38.1 mm;  Mounting Hole Spacing: 47.14 mm, drawing as below:

Flange Size: 36 mm;  Mounting Hole Spacing: 50 mm, drawing as below:

Block Diagram:

CRC Check Routine (C#)

UInt16 Funct_CRC16(unsigned char * puchMsg, UInt16 DataLen)
{
  UInt16 i,j,tmp;
  UInt16 crcdata=0xFFFF;
  for(i=0;i<DataLen;i )
  {
    crcdata=(*puchMsg)^crcdata;
    puchMsg ;
    for(j=0;j<8;j )
    {
      tmp=crcdata&0x0001;
      crcdata=crcdata>>1;
      if(tmp){
        crcdata=crcdata^0xA001;
      }
    }
  }
  return crcdata;
 }

RS485 Integrated Stepper Motor Commissioning and Control Software:

Modbus Poll

New Software in google drive

Adampower

Github Project

Quick Start Guide – Follow the steps below:

LED indicator and status:

more Information on detail, please feel free to contact me

0~5V / 0~10V Analog Voltage Stepper Motor Driver

Product Introduction

0~5V, 0~10V analog voltage type stepper motor driver. Miniature size 42.2mm × 42.2mm × 14.5mm, designed for precise speed control via analog voltage signal. It features wide voltage input and seamless integration with NEMA17 and NEMA23 stepper motors.

The driver accepts 0~5V (or 0~10V) analog voltage input, corresponding to adjustable speed range. High Speed Range: 0~1000RPM, Low Speed Range: 0~500RPM. Both speed ranges and analog signal voltage can be customized as required.

Product Advantages

• Miniature Size: Ultra-compact 42.2mm × 42.2mm × 14.5mm design saves installation space.
• Dual Analog Input: Supports 0~5V or 0~10V analog voltage signal control.
• Wide Voltage Input: DC 12~40VDC input range, recommended working voltage 24VDC.
• High Output Current: Continuous output current 1.4A max, peak current 2.0A.
• Flexible Integration: Integrated design, mountable with NEMA17 and NEMA23 stepper motors.
• Smooth Operation: Low vibration, low noise, stable operation, low motor heating.
• Customizable: Working Speed Range and Analog Signal Voltage can be customized on request.
• Dual Speed Ranges: High Speed Range 0~1000RPM, Low Speed Range 0~500RPM.

Electrical Characteristics

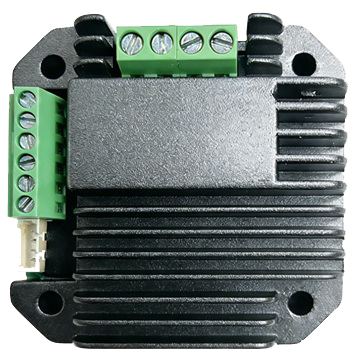

Product Images

Pin Definition

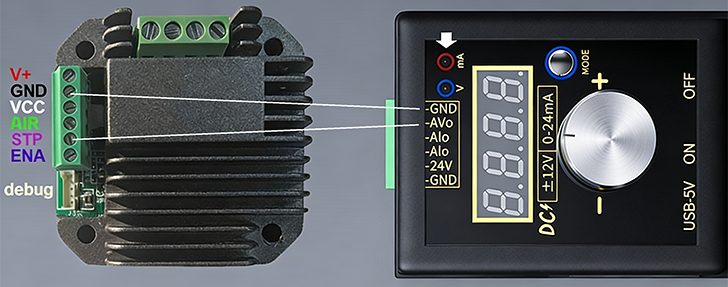

Wiring Diagram

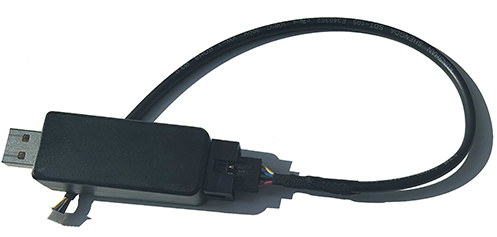

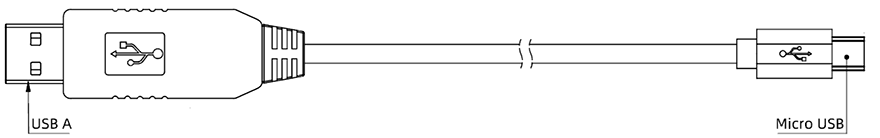

Debug Cable & Software

Debugging Software ↓

Speed Configuration

Analog Voltage Signal 0-5V or 0-10V, Customized Working Speed Range 0-1000RPM for peristaltic pumps requirement.

Both of the two Speed Ranges are customizable, High Speed Range and Low Speed Range.

Default Adjusting Analog voltage: 0~5V corresponding to Speed range, High: 0~1000RPM; Low: 0~500RPM.

Integrated Stepper Motor Assembly

When this NEMA17 Sized Driver assembled with NEMA23 motor via a flange, an Integrated Stepper Motor is formed:

Downloads & Support

• User Manual: Analog Voltage Type Stepper Motor Driver User Manual
• Debug Software: Debugging Software Download

More Information on detail, please feel free to contact me

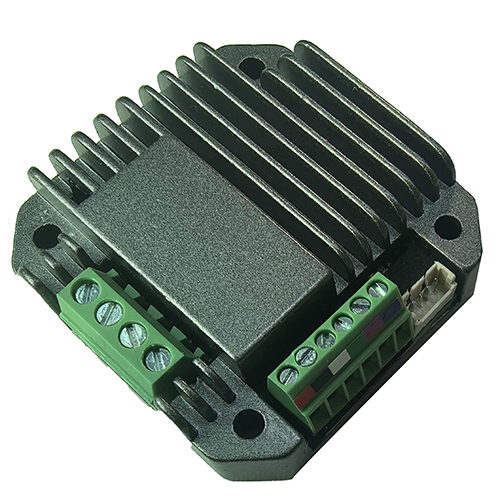

ADM57 Pulse & Direction Stepper Motor Driver

Product Introduction

Pulse & direction stepper motor driver, supporting connection to magnetic encoder and photoelectric encoder. RS232 serial stepper motor controller, pulse and direction stepper driver. ADM57 is designed for NEMA23 integrated stepper motors.

ADM57 miniature integrated stepper motor driver with same size as NEMA23 stepper motor, built-in 32-bit DSP digital chip. Using new control algorithms for vibration suppression and low heat-generation, ensuring the motor runs smoothly with low noise and controllable temperature.

Product Advantages

• High Output Current: Maximum output current 5.6A, meeting all NEMA23 stepper motor application requirements.
• Encoder Support: Compatible with both magnetic encoder and photoelectric encoder.
• Advanced DSP Chip: Built-in 32-bit DSP digital chip for precise motion control.
• Vibration Suppression: New control algorithms for vibration suppression and low heat generation.
• Advanced Micro-Step: Achieve high subdivision effects through internal algorithms, even in low micro-step conditions, widely applied in laser wire solutions.
• Auto Tuning: Integrated automatic matching function for motor parameters, optimizing operating parameters for best performance.
• Flexible Integration: Can be assembled as NEMA23 integrated stepper motor.

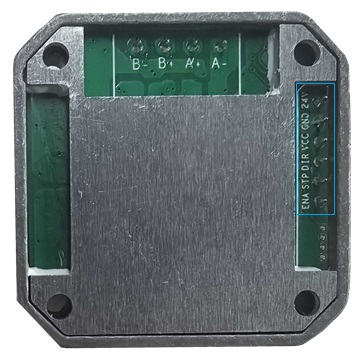

Pin Definition

DIP Switch Configuration

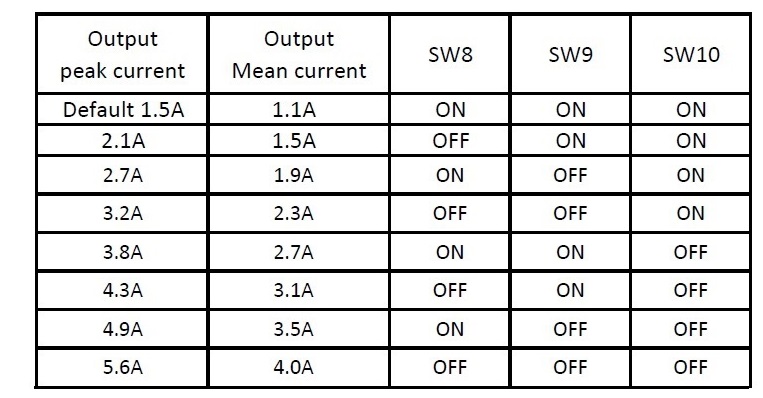

Set Working Current

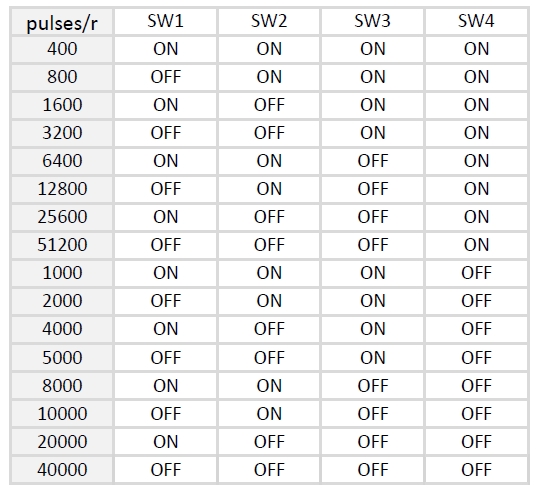

Set Micro-Step

Wiring Diagrams

Input Signal Single Ended Cathode Connection

Input Signal Single Ended Common Anode Connection

Input Signal Single Ended Cathode Connection (Alt)

Integrated Stepper Motor Assembly

Make the integrated NEMA23 stepper motor directly via simple screw:

Downloads & Support

• User Manual: ADM57 Pulse & Direction Stepper Motor Driver User Manual

More Information on detail, please feel free to contact me

ADM57S RS485 Serial Stepper Motor Controller

Product Introduction

RS485 Serial Stepper Motor Controller, designed for NEMA23 stepper motors. It features standard RS485 communication protocol with built-in motion control instructions, and supports multi-axes control up to 32 axes simultaneously.

Product Advantages

• RS485 Communication: Standard RS485 communication protocol with built-in motion control instructions.
• Multi-Axis Control: Extending up to 32 axes for simultaneous control.
• Wide Voltage Input: DC 15~50VDC input range, recommended 36VDC.
• High Output: Continuous output current 4.0A max, peak current 5.6A.
• Flexible Integration: Mountable with NEMA23 and NEMA34 stepper motors.
• Smooth Operation: Low vibration, low noise, stable operation, low motor heating.
• Advanced Features: Any micro-step settable, overvoltage/undervoltage/overcurrent protection, built-in automatic motor parameter matching.
• Serial Debugging: RS232/RS485 debugging function.

Port Definition

• 1. VDC: Positive power input: DC voltage 15-50VDC
• 2. GND: Negative power input: DC voltage GND
• 3. COM: IO signal level common anode common terminal, amplitude 5VDC
• 4. LIM1-: Reverse limit signal port, valid for rising edge
• 5. LIM2-: Reverse limit signal port, valid for rising edge
• 6. STA: Start and stop signal port, valid on rising edge
• 7. RSA: RS485 group A signal
• 8. RSB: RS485 group B signal

Working Principle

DIP Switch Configuration

ADM57 stepper motor driver, using 6 DIP switches for setting the communication baud rate and device ID.

Device ID Setting (SW1 ~ SW4)

The formula for calculating the ID: ID = 1×SW1 2×SW2 4×SW3 8×SW4. The default ID value is 0, broadcast mode accepts data but does not return data.

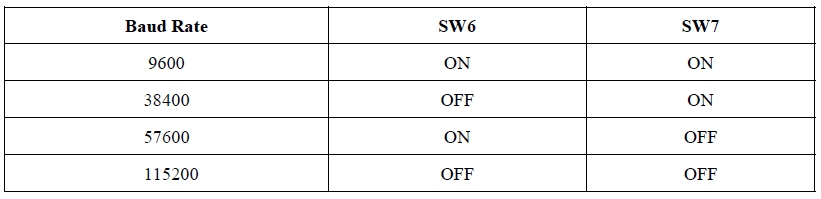

Communication Baud Rate Setting (SW5 ~ SW6)

Integrated Stepper Motor

ADM57S Series RS485 Serial Stepper Motor Controller, NEMA23 Integrated Stepper Motor:

CRC Check Routine (C#)

Uint16 Funct_CRC16(unsigned char * puchMsg, Uint16 DataLen)
{
    Uint16 i, j, tmp;
    Uint16 crcdata = 0xFFFF;
    for(i = 0; i < DataLen; i )
    {
        crcdata = (*puchMsg) ^ crcdata;
        puchMsg ;
        for(j = 0; j < 8; j )
        {
            tmp = crcdata & 0x0001;
            crcdata = crcdata >> 1;
            if(tmp)
            {
                crcdata = crcdata ^ 0xA001;
            }
        }
    }
    return crcdata;
}

Downloads & Support

• User Manual: ADM57S RS485 Serial Stepper Motor Controller Manual
• Modbus Poll Software:
• AdamPower Software: RS485 Controller Software

More Information on detail, please feel free to contact me

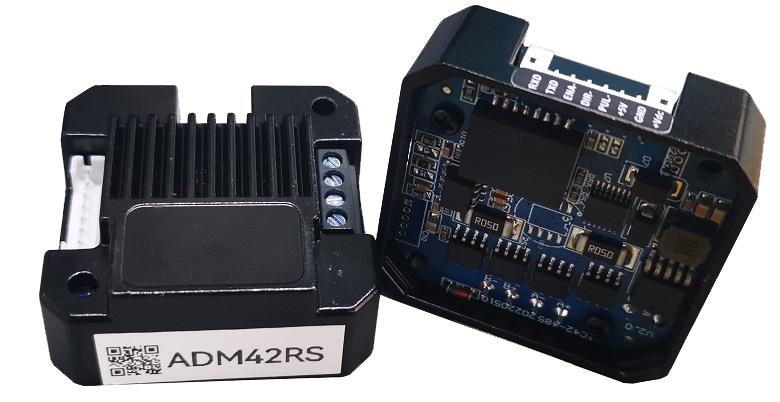

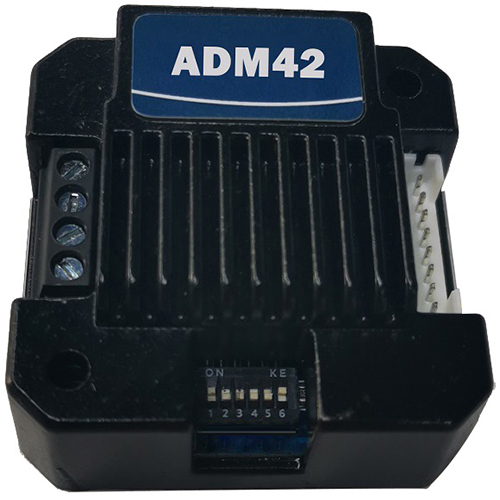

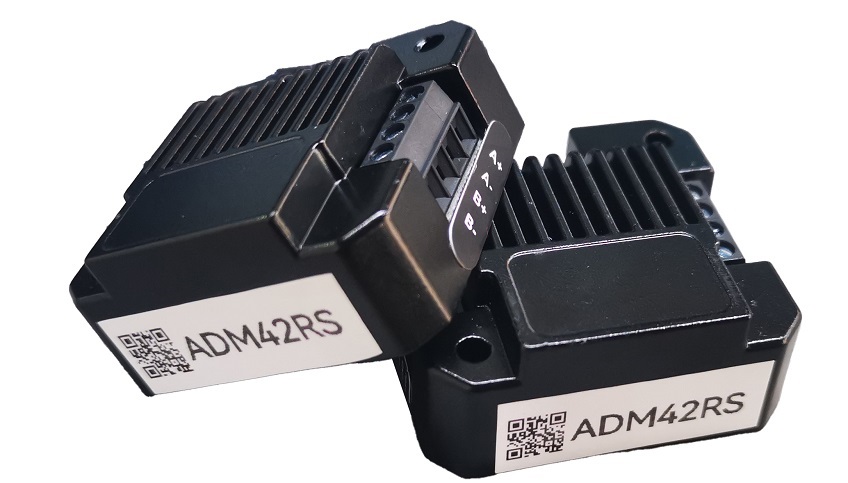

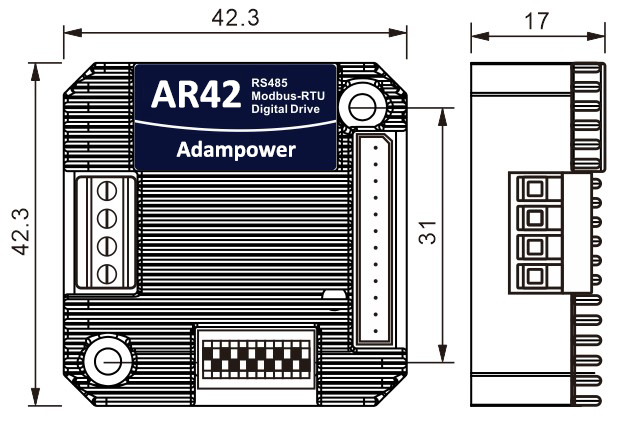

ADM42S RS485 Serial Stepper Motor Controller

Product Introduction

RS485 Serial Stepper Motor Controller, designed for NEMA17 stepper motors. It features miniature size, standard RS485 communication protocol with built-in motion control instructions, and supports multi-axes control up to 32 axes simultaneously.

Product Advantages

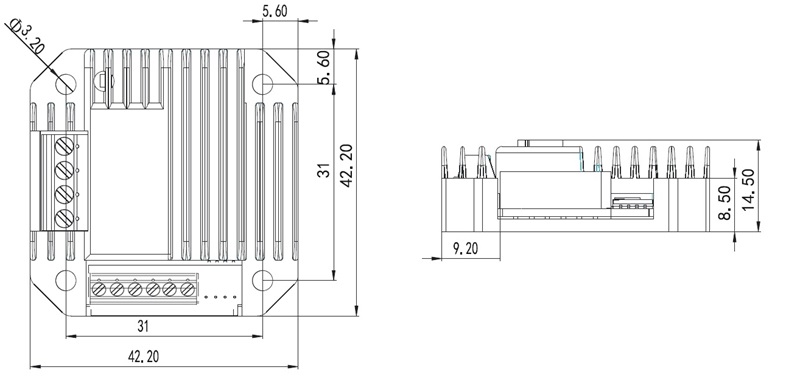

• Miniature Size: Ultra-compact 42.3mm × 42.3mm × 21mm design.
• RS485 Communication: Standard RS485 communication protocol with built-in motion control instructions.
• Multi-Axis Control: Extending up to 32 axes for simultaneous control.
• Wide Voltage Input: DC 12~32VDC input range, recommended 24VDC.
• High Output: Continuous output current 1.58A max, peak current 2.2A.
• Flexible Integration: Mountable with 42mm/39mm stepper motors.
• Smooth Operation: Low vibration, low noise, stable operation, low motor heating.
• Advanced Features: Any micro-step settable, overvoltage/undervoltage/overcurrent protection, built-in automatic motor parameter matching.
• Serial Debugging: RS232/RS485 debugging function.

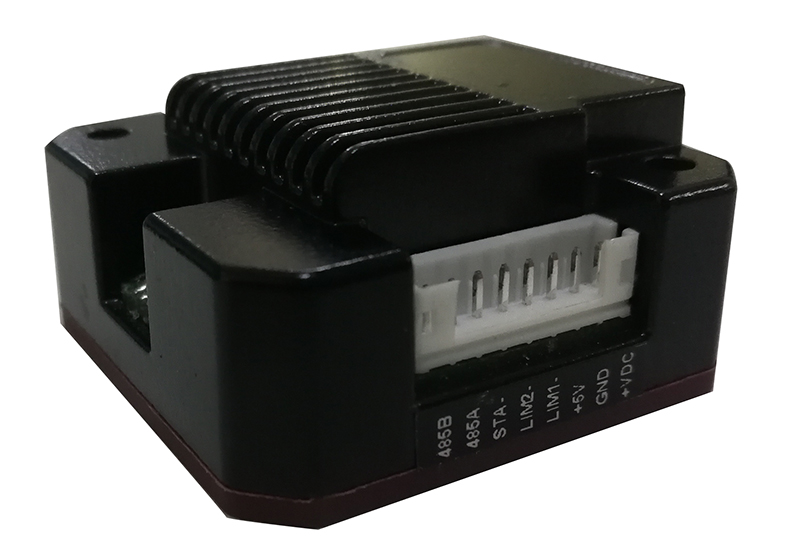

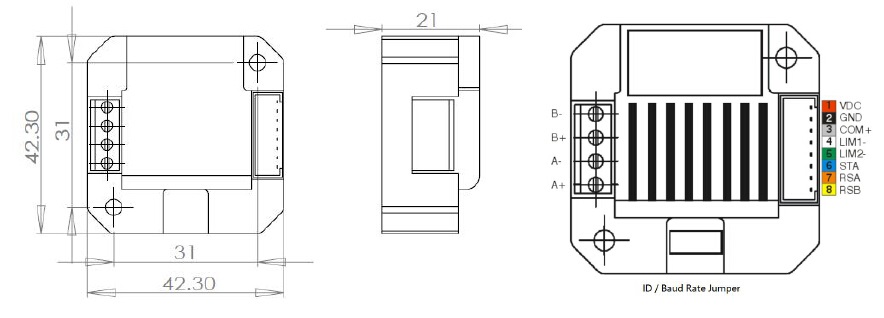

Port Definition

• 1. VDC: Positive power input: DC voltage 12-32VDC
• 2. GND: Negative power input: DC voltage GND
• 3. COM: IO signal level common anode common terminal, amplitude 5VDC
• 4. LIM1-: Reverse limit signal port, valid for rising edge
• 5. LIM2-: Reverse limit signal port, valid for rising edge
• 6. STA: Start and stop signal port, valid on rising edge
• 7. RSA: RS485 group A signal
• 8. RSB: RS485 group B signal

Working Principle

Assembly Options

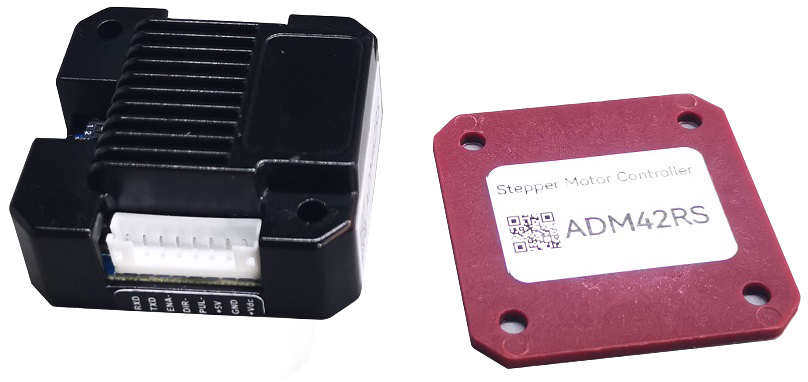

With NEMA17 Plastic Flange

ADM42 Series RS485 Stepper Motor Controller with NEMA17 size plastic flange:

Direct Mount to NEMA17 Motor

When the RS485 Stepper Motor Controller without NEMA17 Plastic Flange, it can be assembled to NEMA17 Stepper Motor directly:

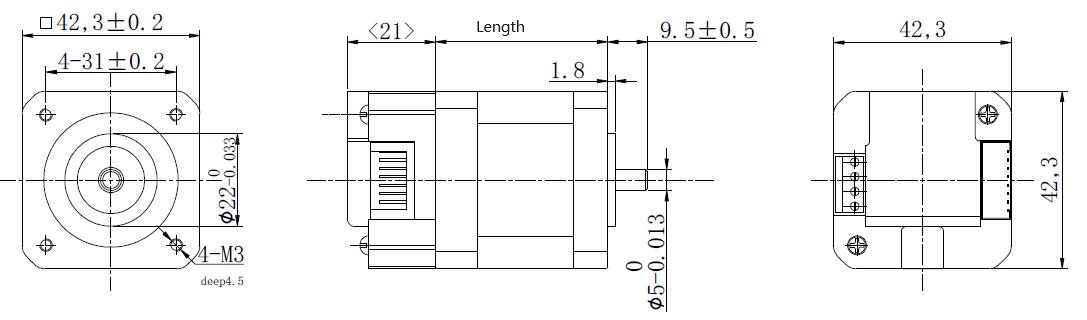

NEMA17 Integrated Stepper Motor, more concise and aesthetically pleasing:

DIP Switch Configuration

RS485 Stepper Motor Controller, using 6 DIP switches for setting the communication baud rate and device ID.

Device ID Setting (SW1 ~ SW4)

The formula for calculating the ID: ID = 1×SW1 2×SW2 4×SW3 8×SW4. The default ID value is 0, broadcast mode accepts data but does not return data.

Communication Baud Rate Setting (SW5 ~ SW6)

CRC Check Routine (C#)

Uint16 Funct_CRC16(unsigned char * puchMsg, Uint16 DataLen)
{
    Uint16 i, j, tmp;
    Uint16 crcdata = 0xFFFF;
    for(i = 0; i < DataLen; i )
    {
        crcdata = (*puchMsg) ^ crcdata;
        puchMsg ;
        for(j = 0; j < 8; j )
        {
            tmp = crcdata & 0x0001;
            crcdata = crcdata >> 1;
            if(tmp)
            {
                crcdata = crcdata ^ 0xA001;
            }
        }
    }
    return crcdata;
}

Downloads & Support

• User Manual: ADM42S RS485 Serial Stepper Motor Controller Manual
• Modbus Poll Software:
• AdamPower Software: RS485 Controller Software

More Information on detail, please feel free to contact me
